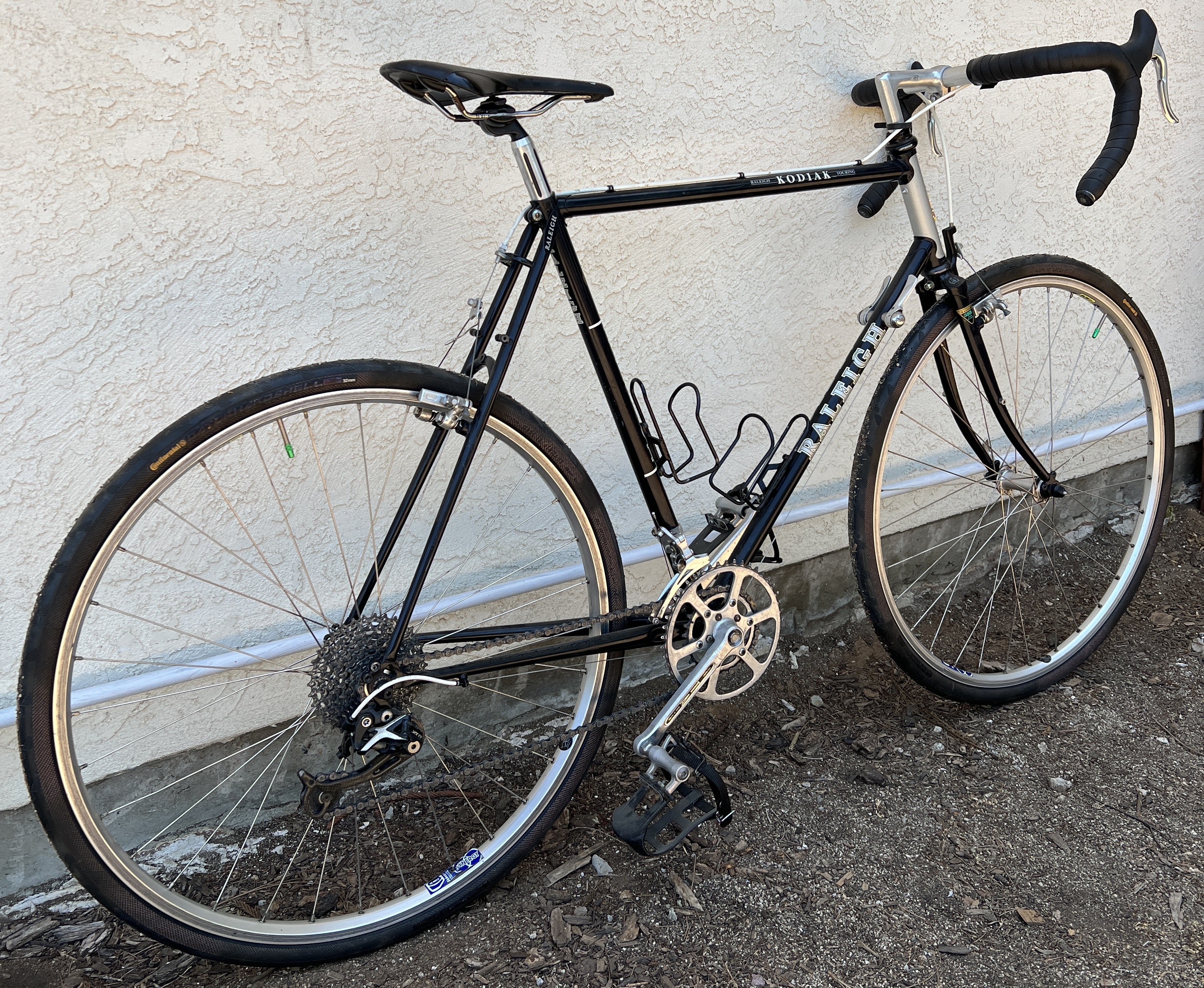

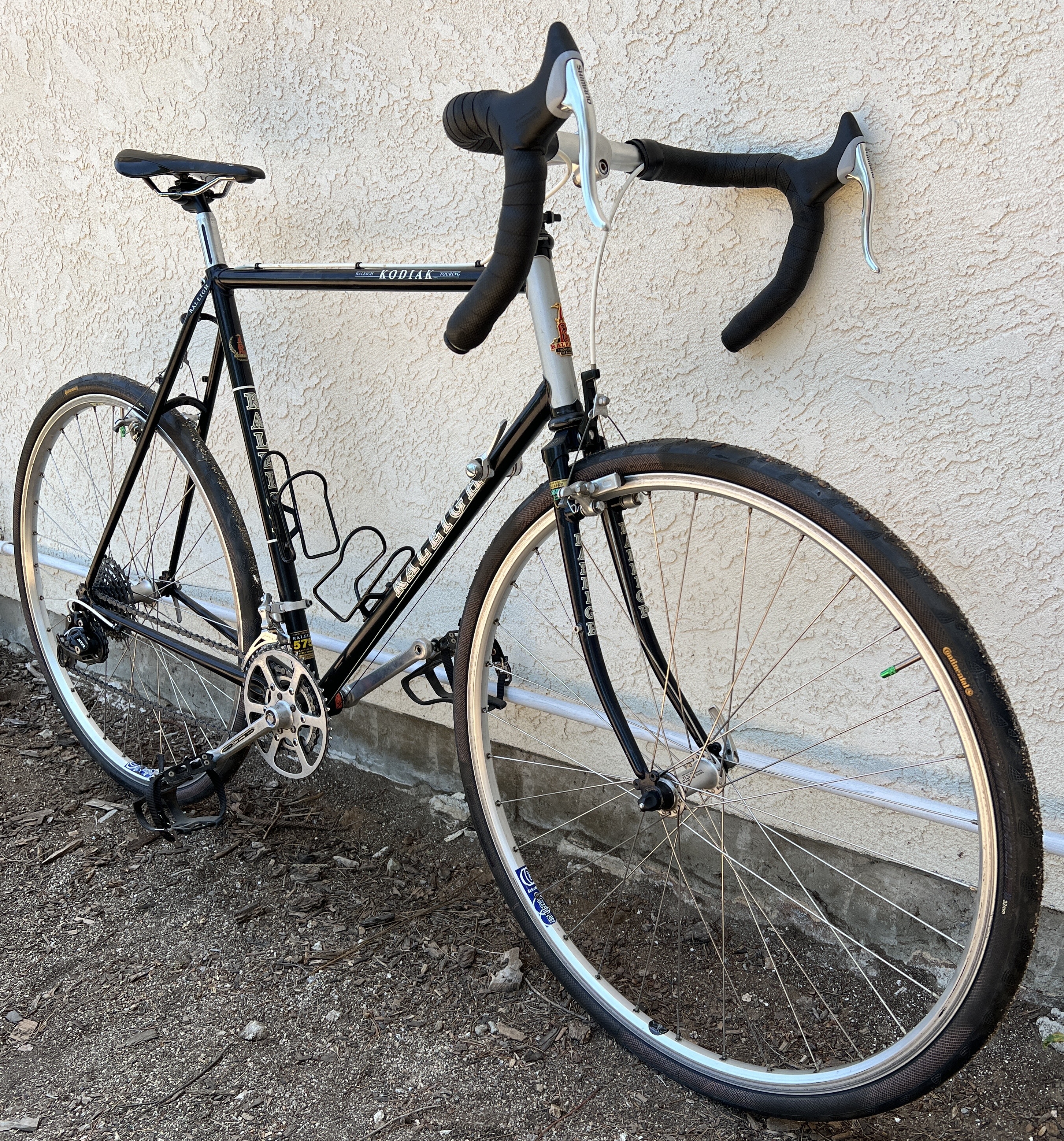

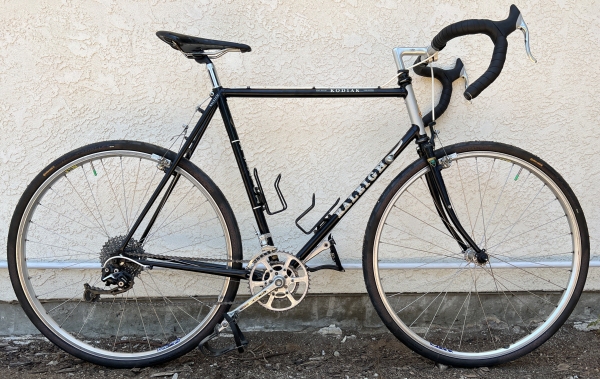

1986 Raleigh Kodiak

Serial number: 6CQ0341 M(R)

Components: Shimano FD 2206 front derailleur; Shimano XTR rear derailleur; TA crankset 28-46; Shimano 9 speed 11-34 cassette [22 - 110 gear inches]; Phil Wood bottom bracket; Shimano Deore XT hubs; Velocity Synergy 32 hole rims; SRAM chain; SR Laprade seatpost; Koobi Enduro Gel saddle; Modolo AE 2093 Brevettato handlebars; SR stem; Shimano levers and shifters; Dia Compe cantilever brakes; FSA Duron X headset (crown race seat reduced to ISO diameter from JIS diameter); All City Cecil Pro pedals

Weight: 23.5 pounds



link to larger photo



link to larger photo


link to larger photo
