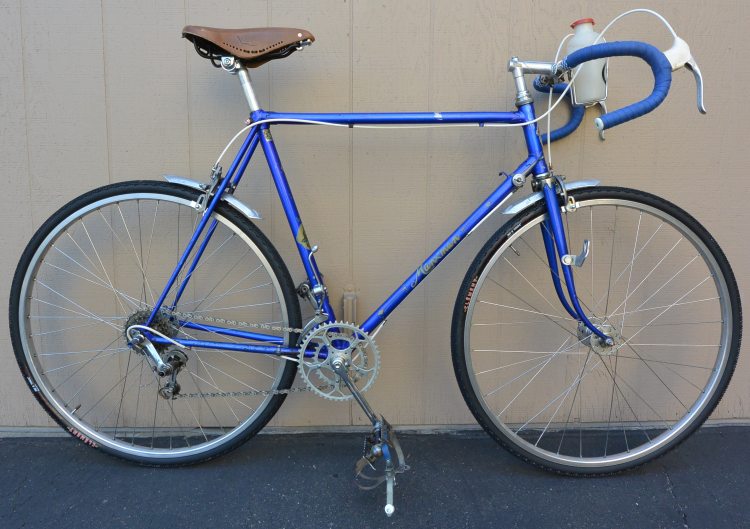

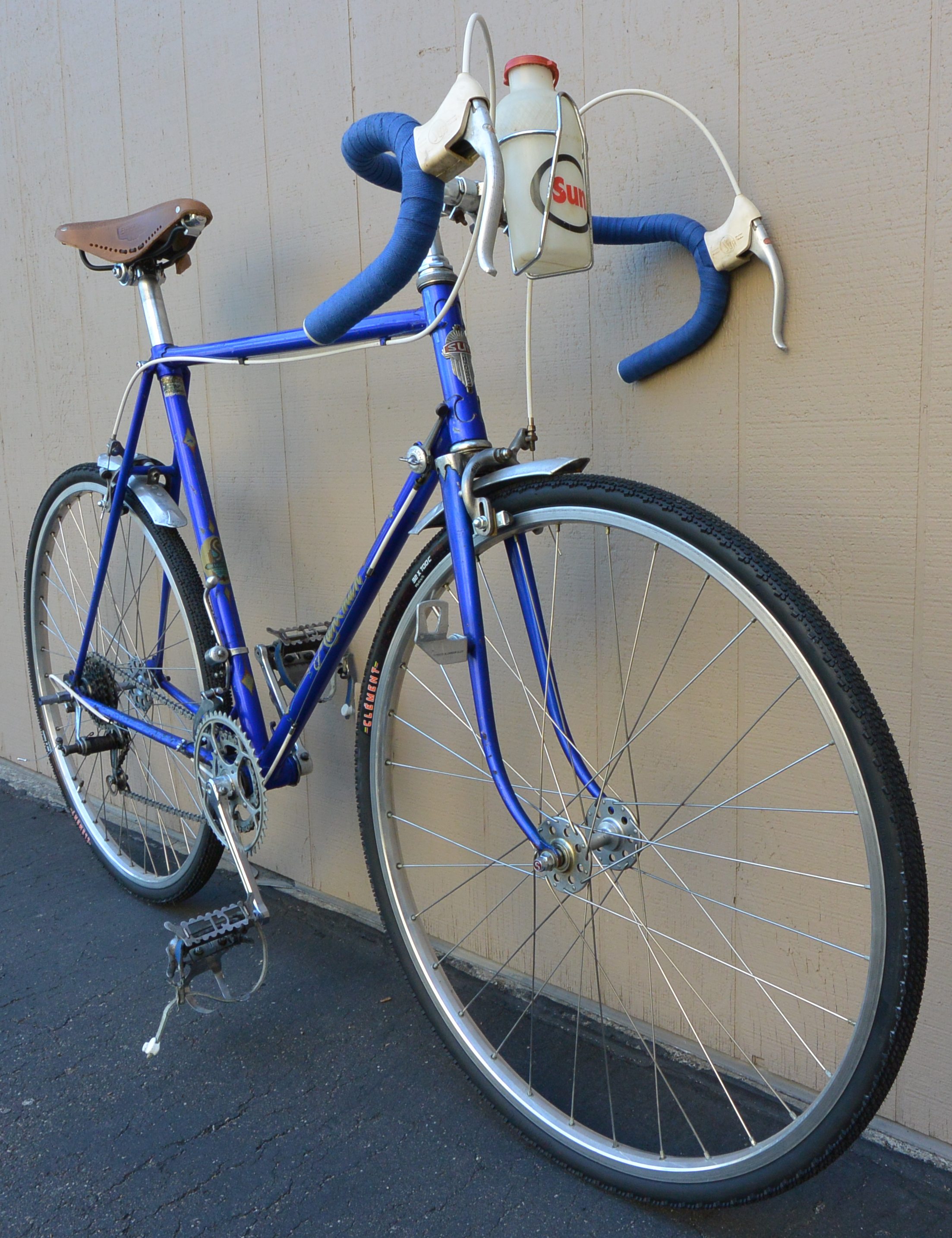

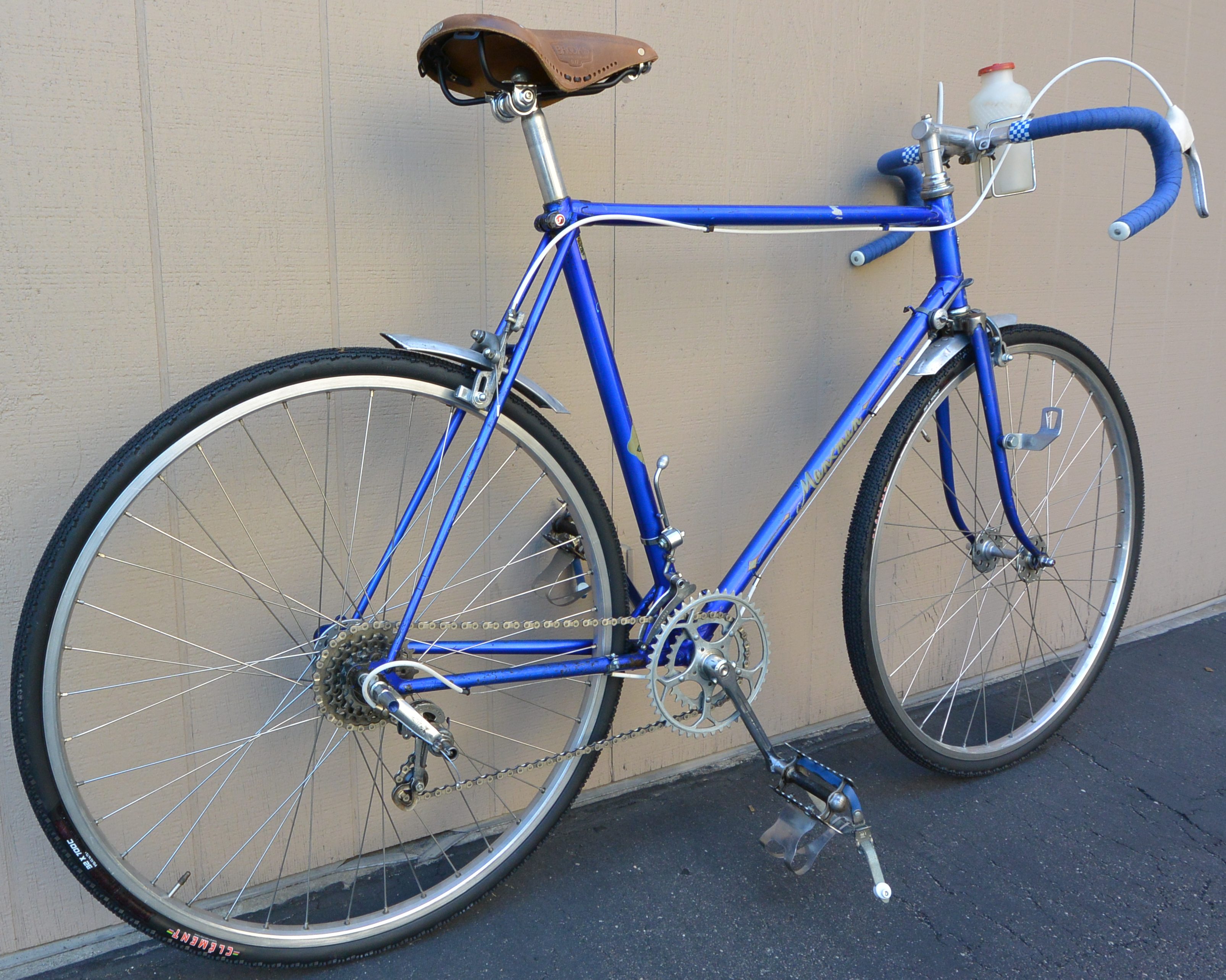

1951/1952 Sun Manxman

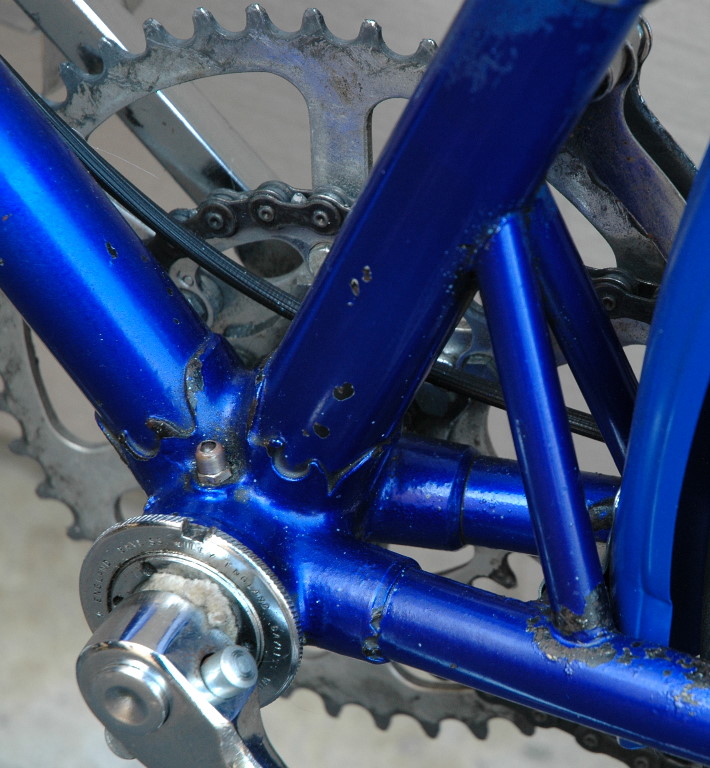

serial number SSM4407X, 22.75" seat tube, 23.5" top tube, Reynolds 531 straight gauge frame tubes, stiffening struts behind bottom bracket (see struts closer up); steerer tube stamped M27. Purchased from Roberto Medeiros.
Components: Simplex 303.T rear gear; Simplex Competition lever front changer; Simplex downtube shifter; Milremo cottered cranks; 38-50 Rosa 1/8" steel chainrings; four speed Regina G.S. Corse freewheel [15-18-23-28; 36 - 88 gear inches]; KMC 1/8" chain; TDC bottom bracket; TDC #5 axle; Chater Lea tommy bar pedals; GB Professionnel stainless steel toe clips; Lapize toestraps; Reg toestrap buttons; BH Racelite 40o flip-flop rear hub & BH Airlite 32o front hub; Sun CR18 700c rims; Sun sidepull brakes; Weinmann levers with Sun brakehoods; Jagwire X-Caliper brake pads; 4" GB stem & handlebars; GB handlebar plugs; TA handlebar water bottle cage; Brampton headset; alloy dome-top 26.8mm seatpin; Middlemore saddle; Ideale No. 3 saddle clamp; Spencer style mudguards
Weight: 27.4 pounds

hover your mouse over this image to magnify it or link directly to larger photo


hover your mouse over this image to magnify it or link directly to larger photo


hover your mouse over this image to magnify it or link directly to larger photo

Ad for Strutted Bottom Bracket

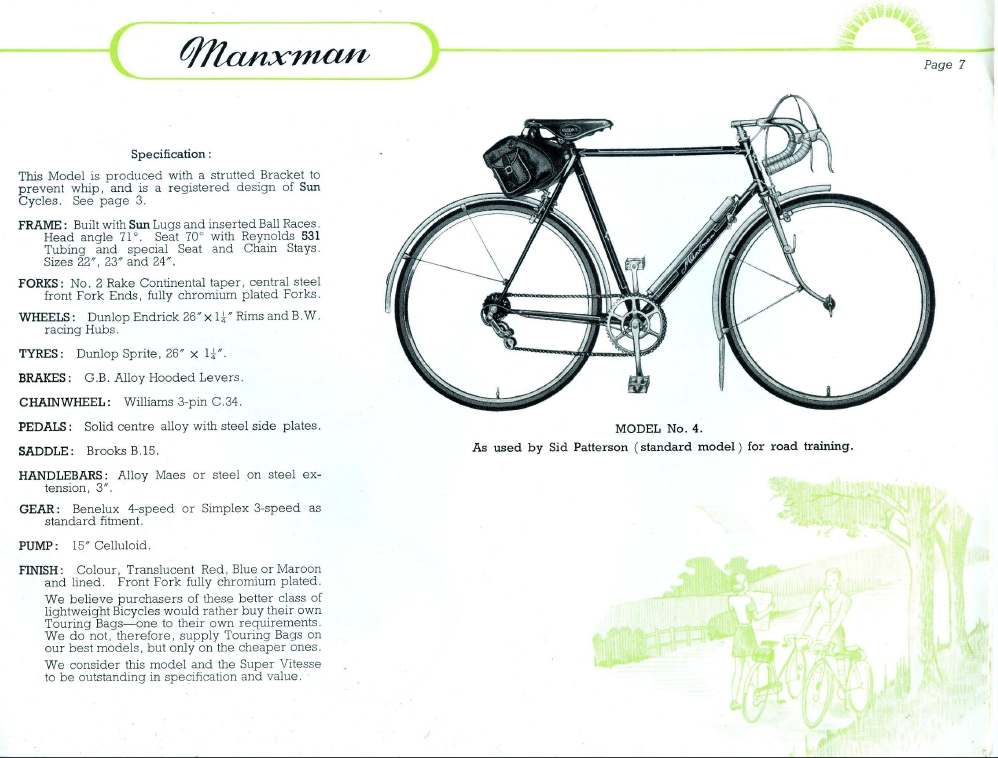

1950/1951 Sun Manxman spec

click to see 1951 bike spec larger size

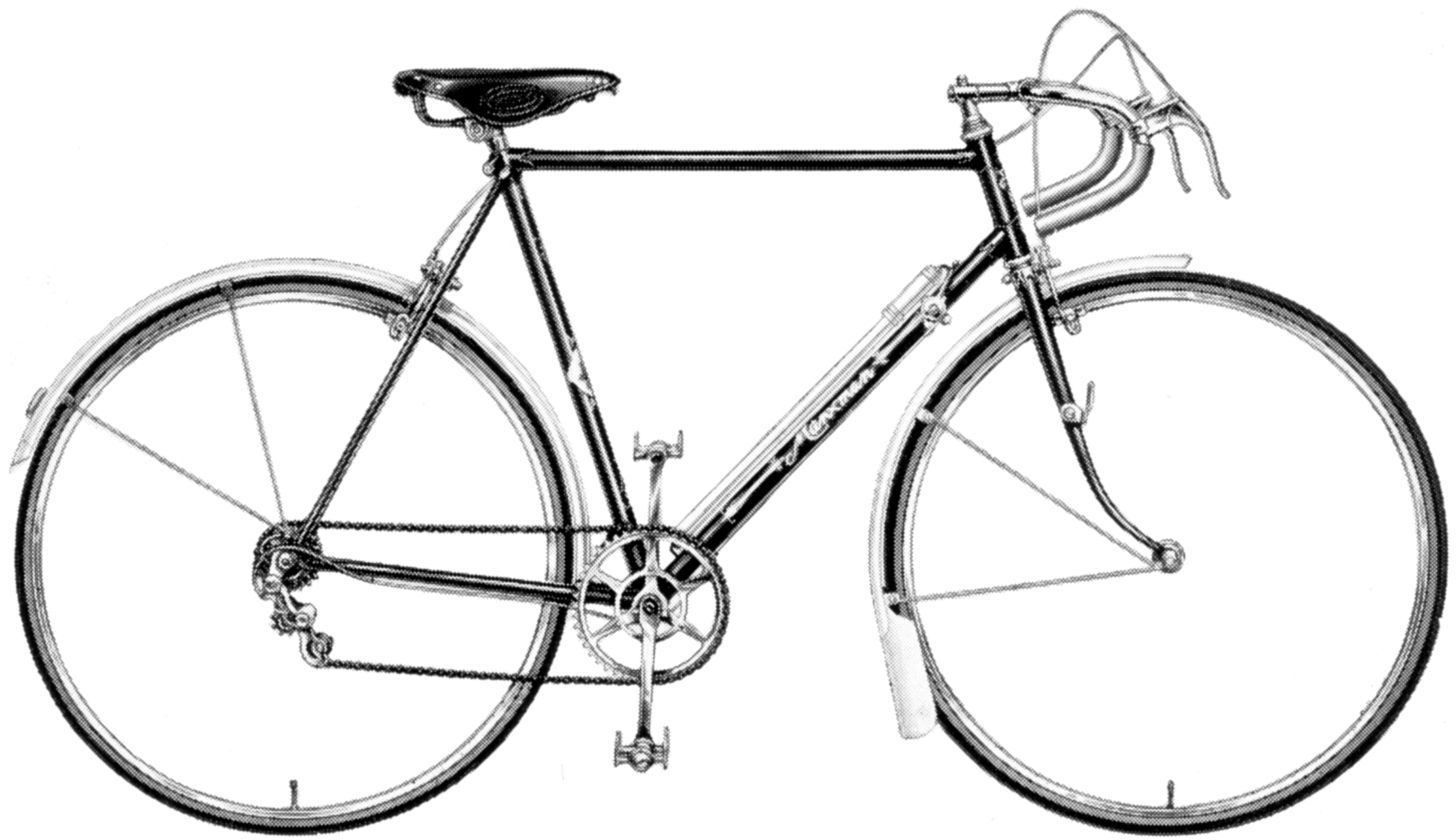

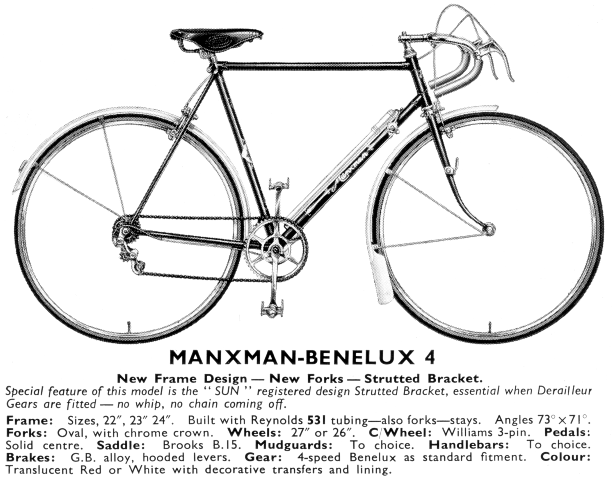

1952/1953 Sun Manxman spec

click to see 1953 bike spec larger size

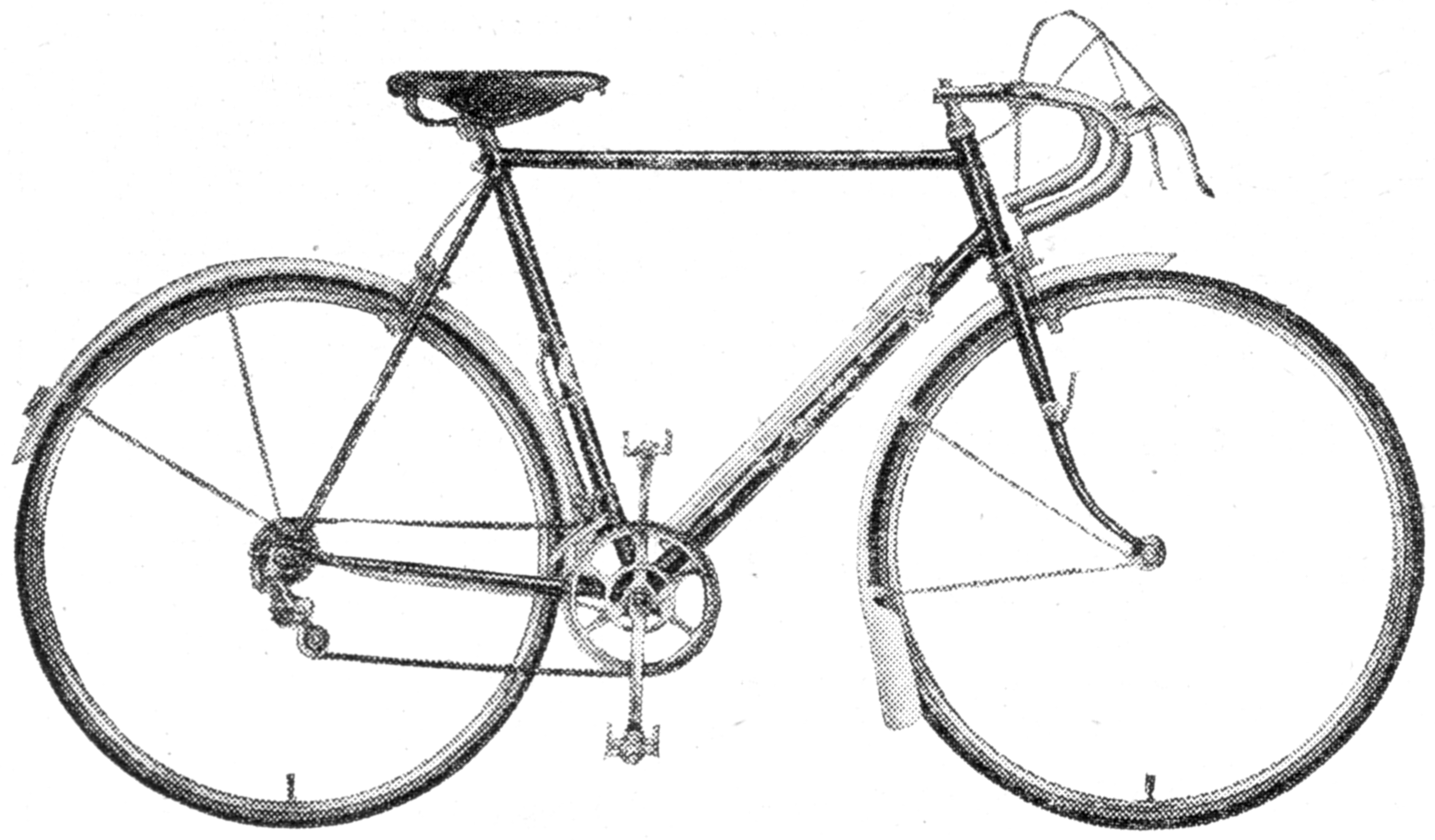

1953/1954 Sun Manxman spec

click to see 1954 bike spec larger size
