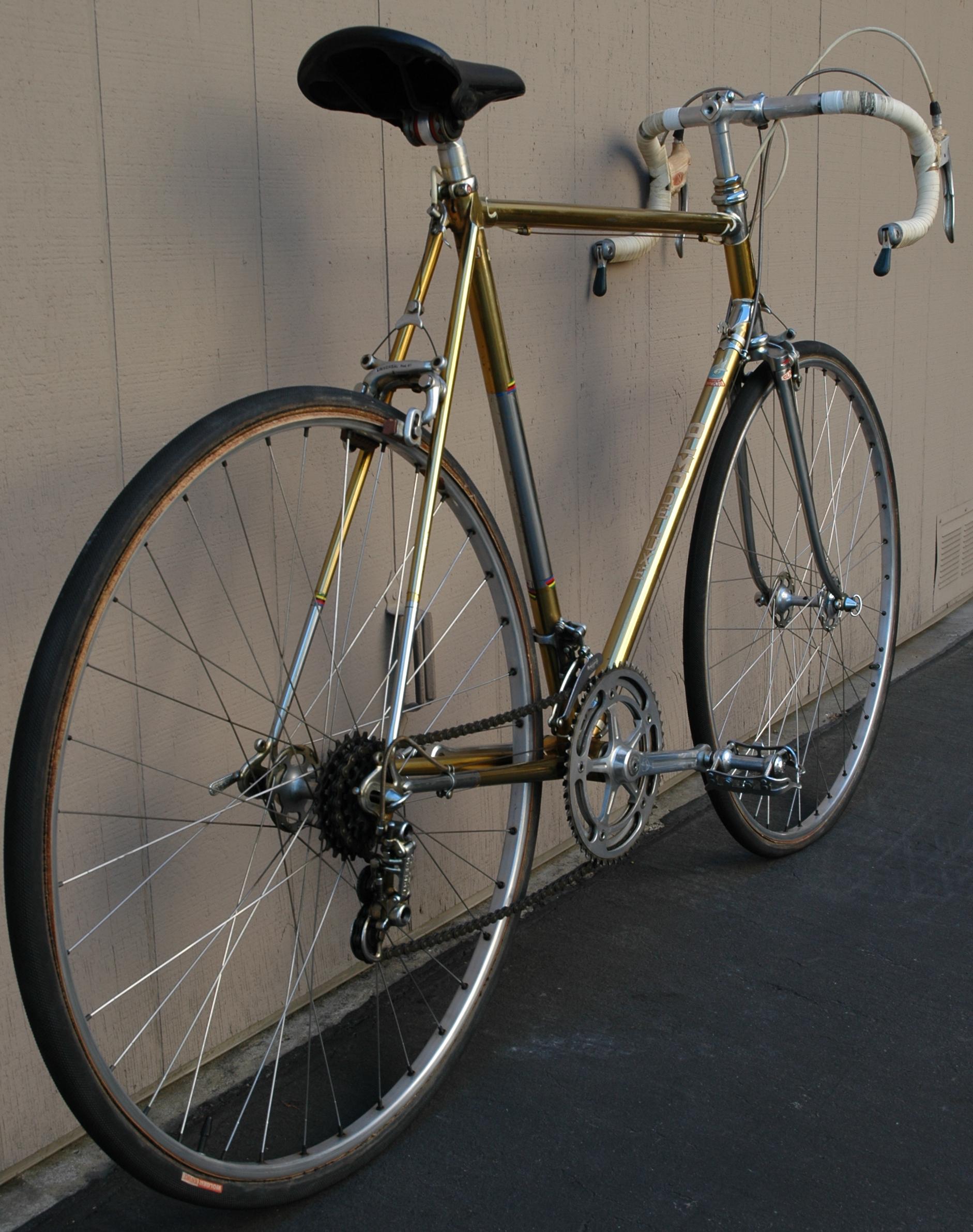

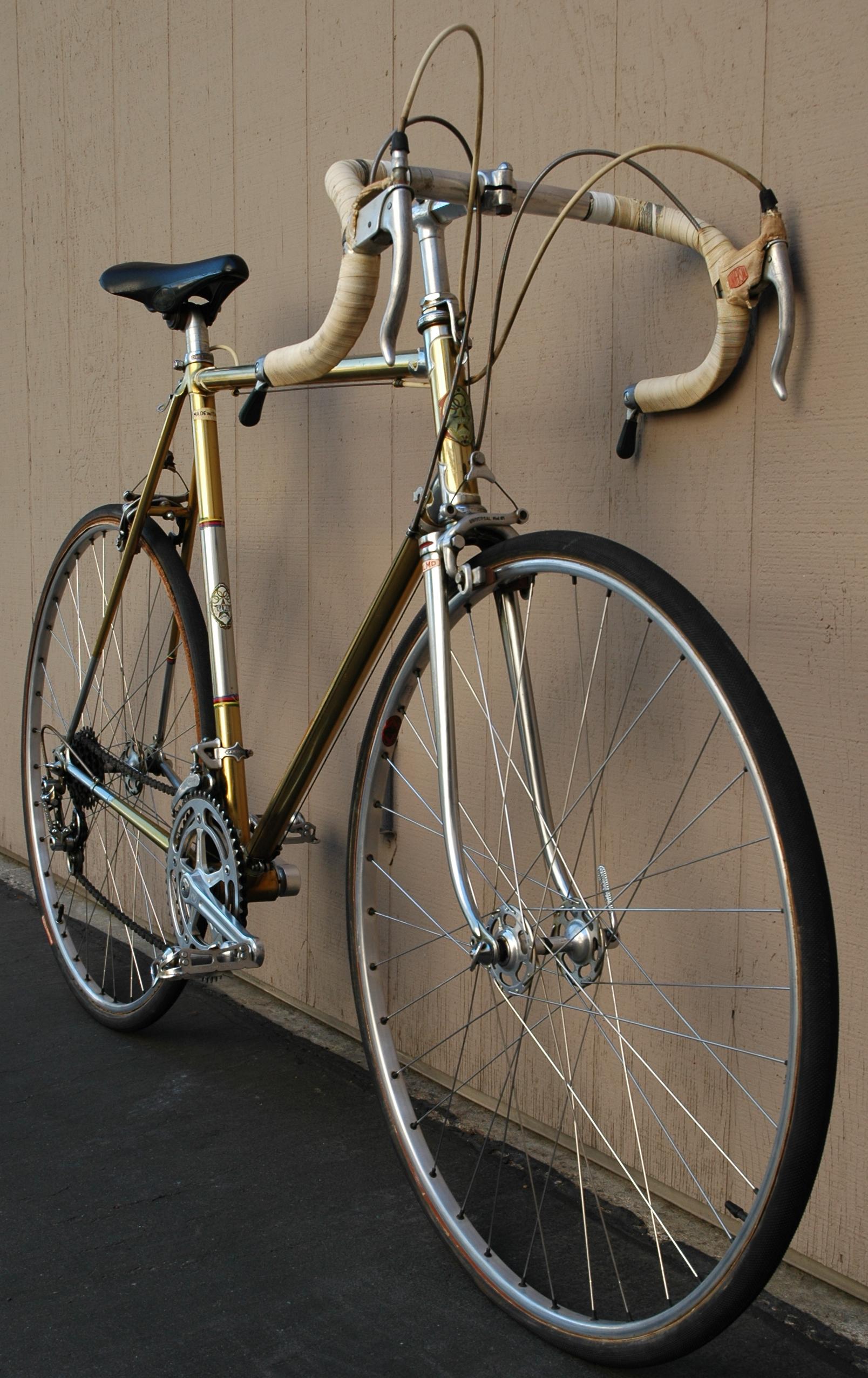

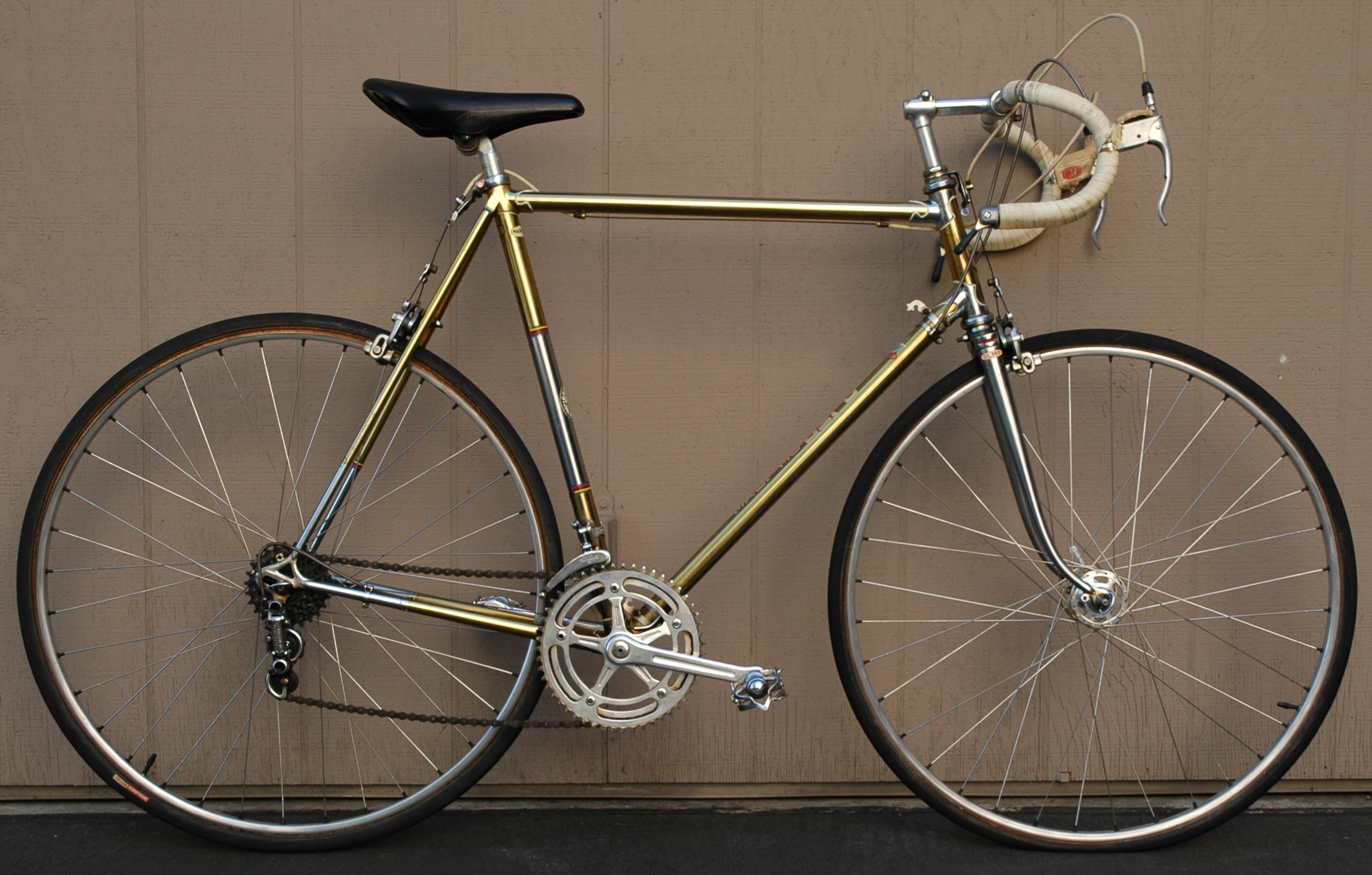

1963 Olmo Deluxe: photos of decals and orginal condition

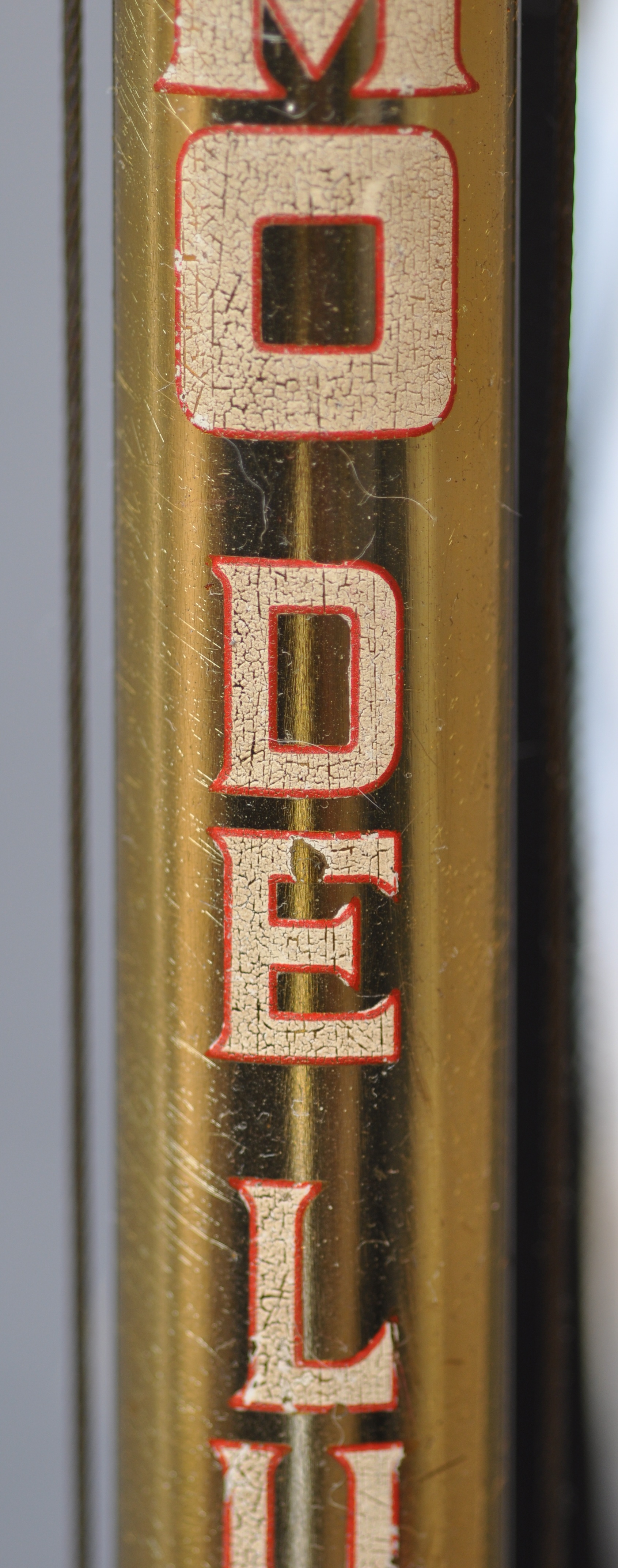

- "OLMO DE LUXE" on down tube
-

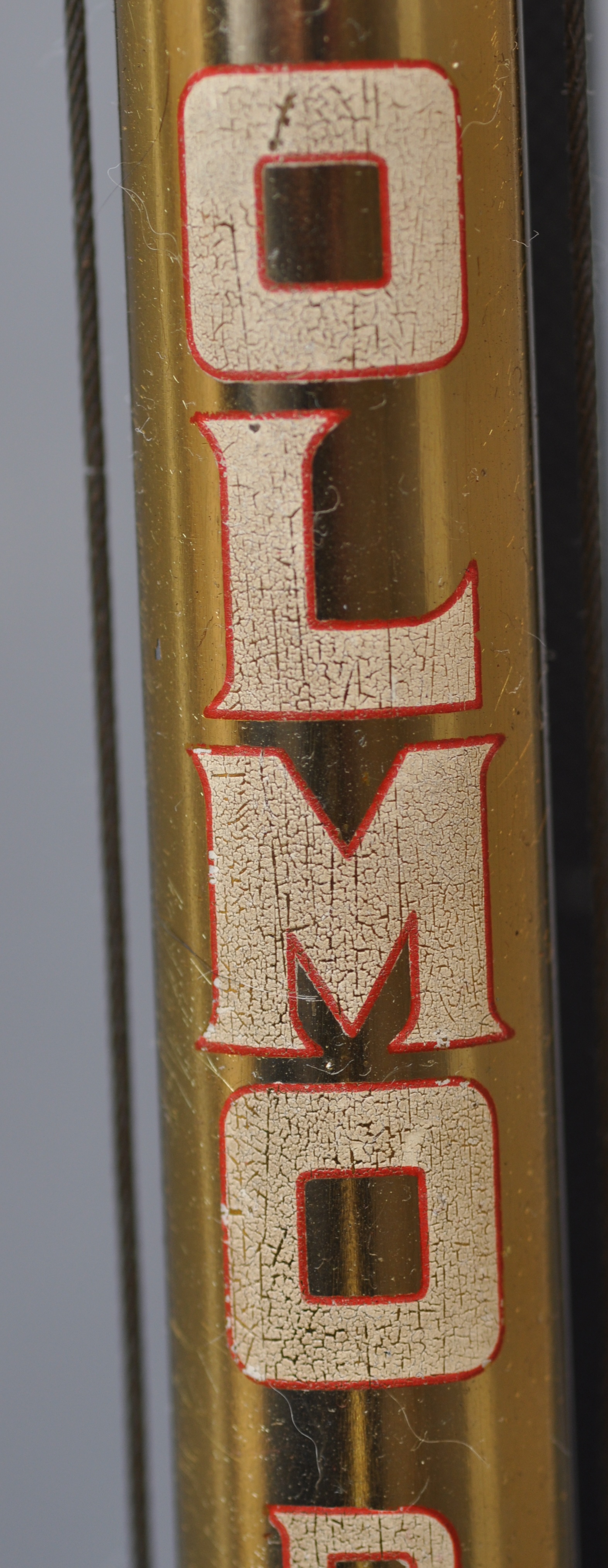

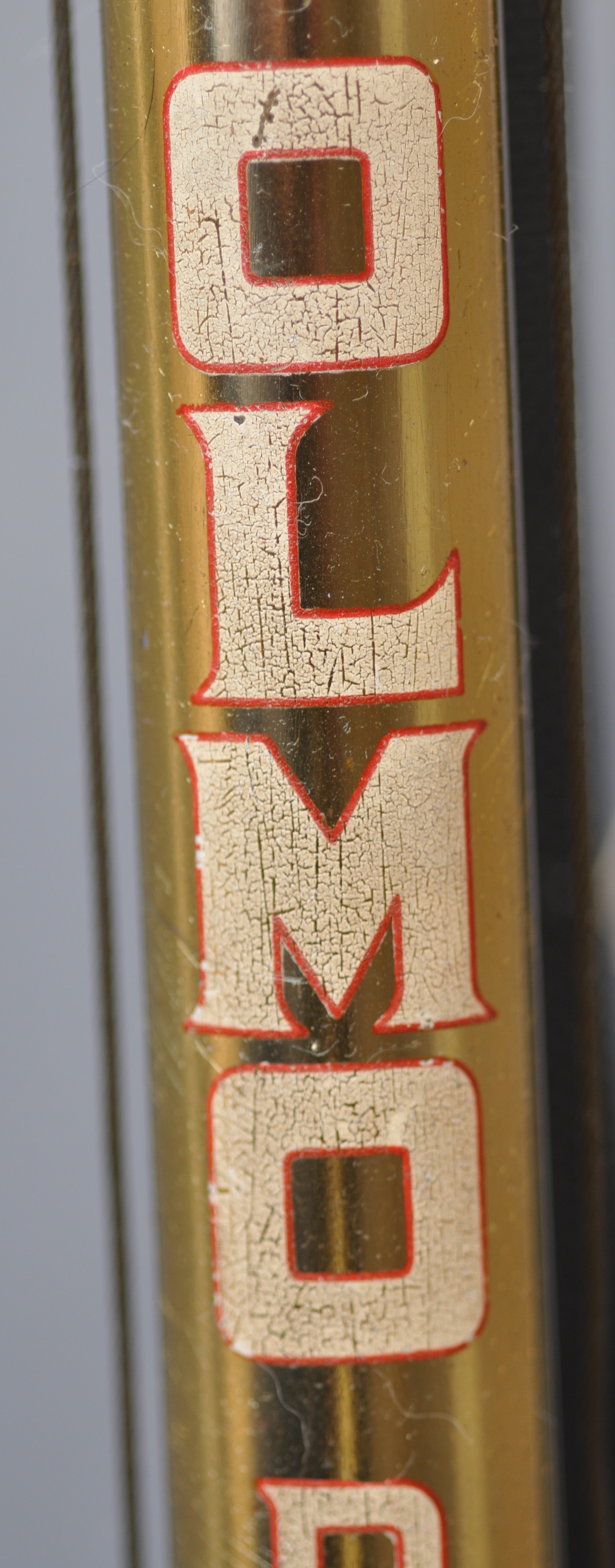

- OLMO: letters are 22mm high;
O & L letters are 23 mm wide; M letter is 27 mm wide; O letter starts 139mm below head lug point
- OLMO
- O DE L
- O DE L: DE LUXE letters are 14mm wide & 17mm high

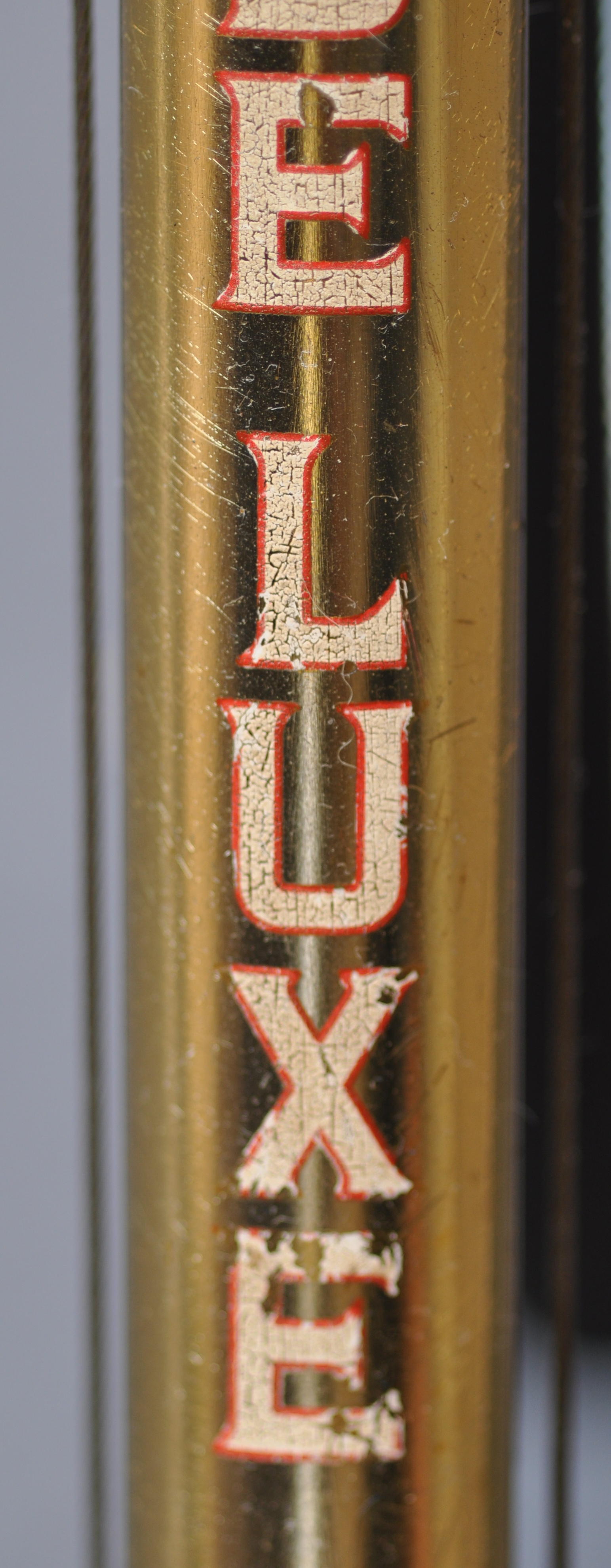

- E LUXE
- E LUXE

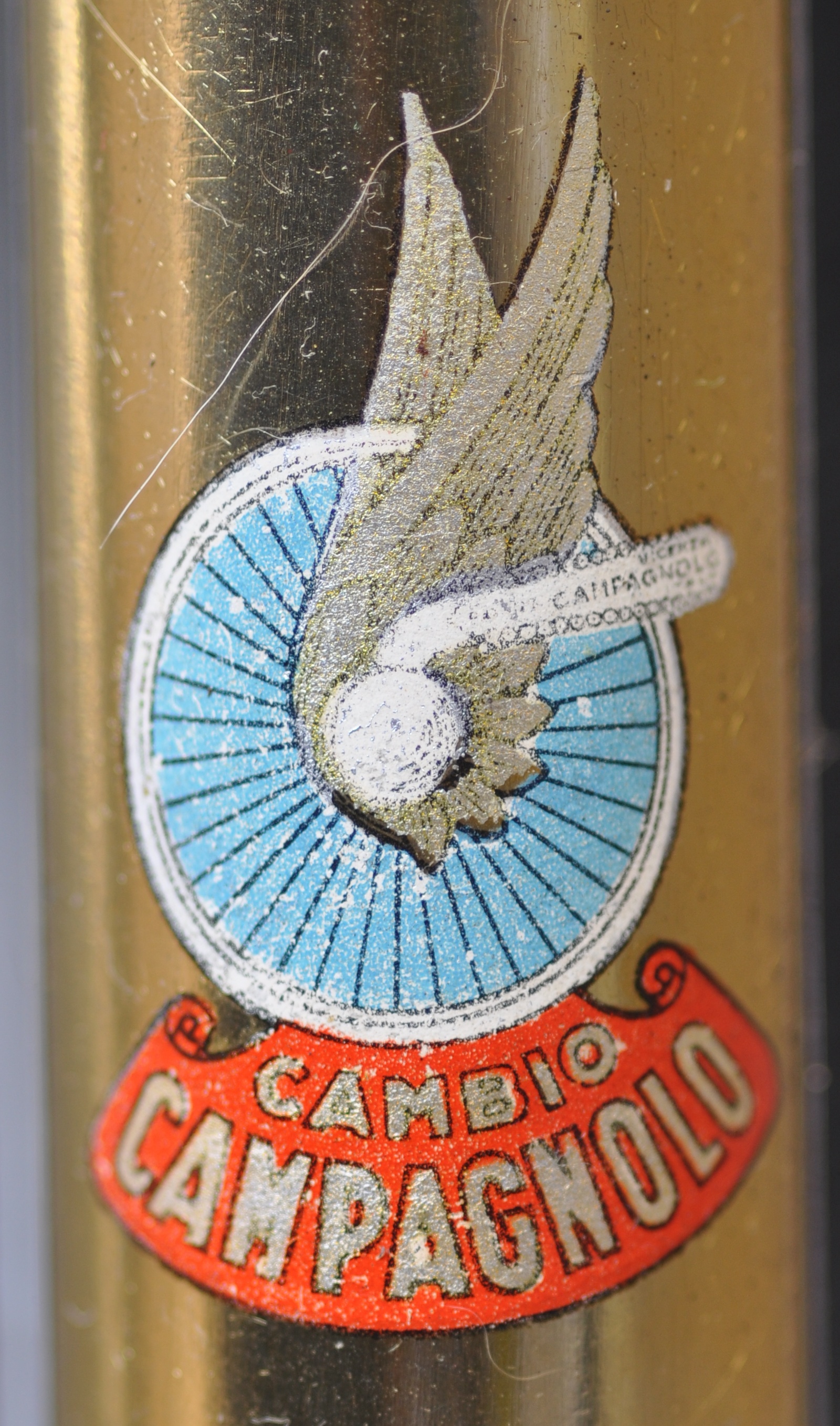

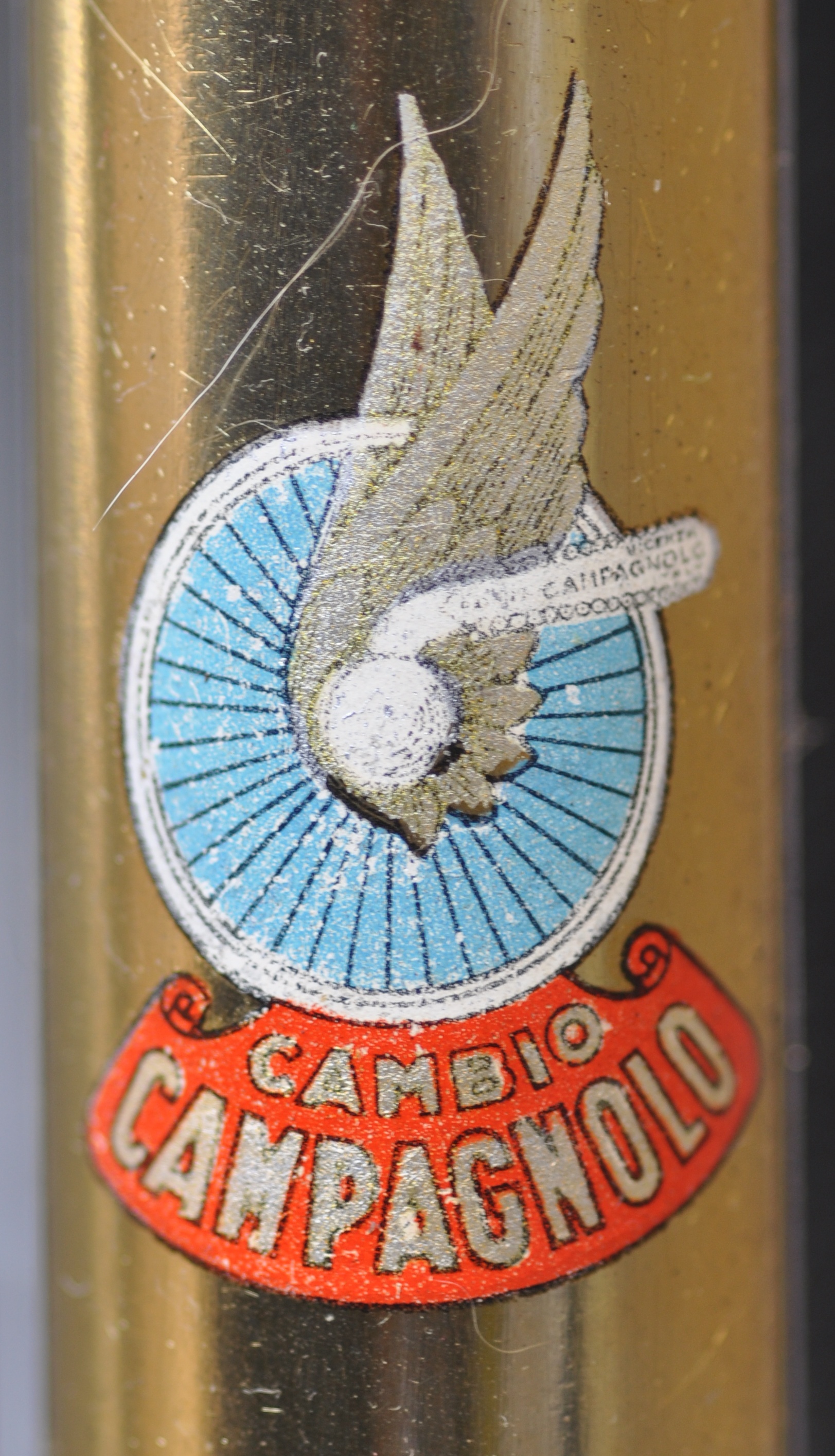

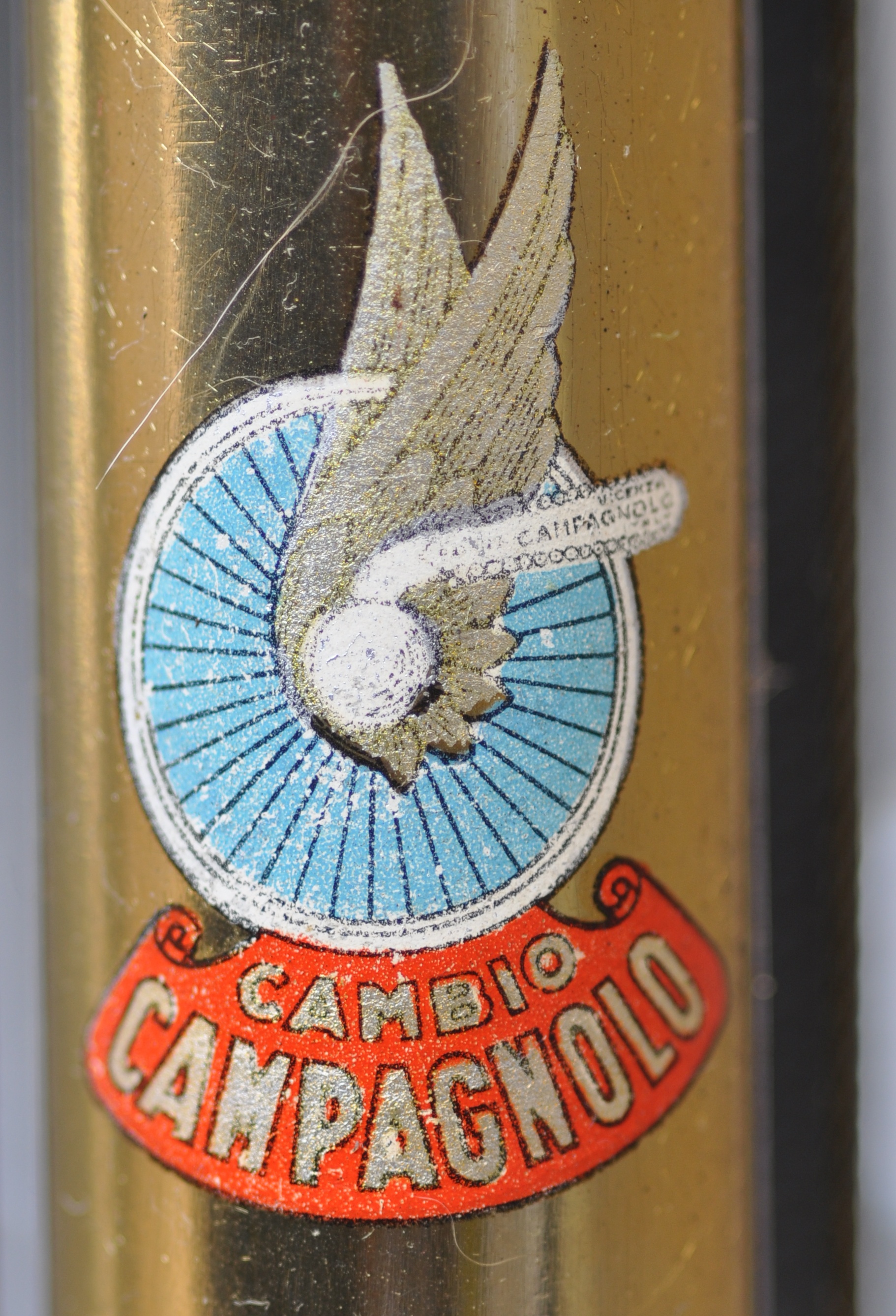

- CAMBIO CAMPAGNOLO WINGED QUICK RELEASE: 45 mm high; 31 mm wide;
on down tube, 40mm below head lug point
- OLMO on fork: 30mm wide; 5.5-10mm high; 6mm below fork crown

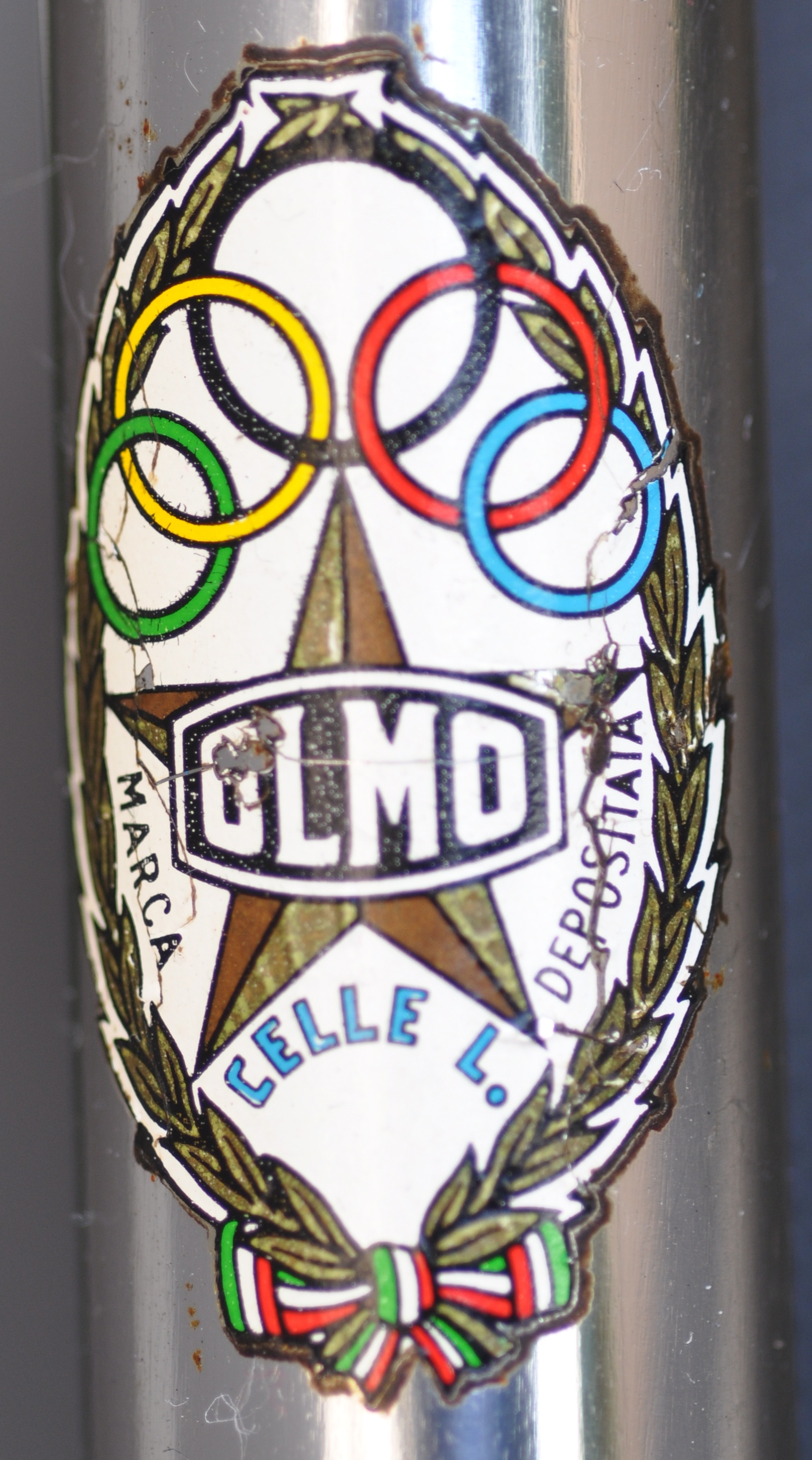

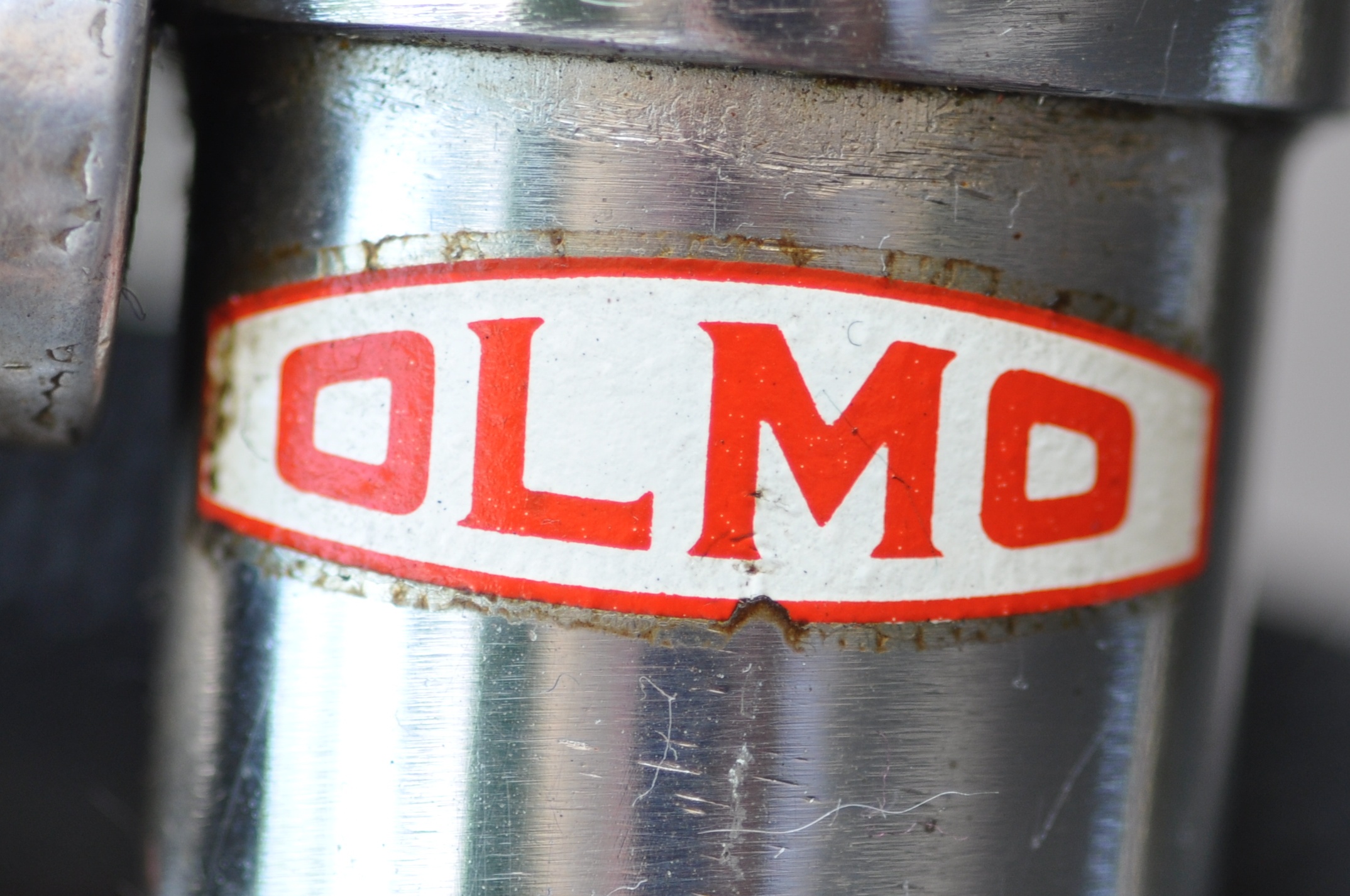

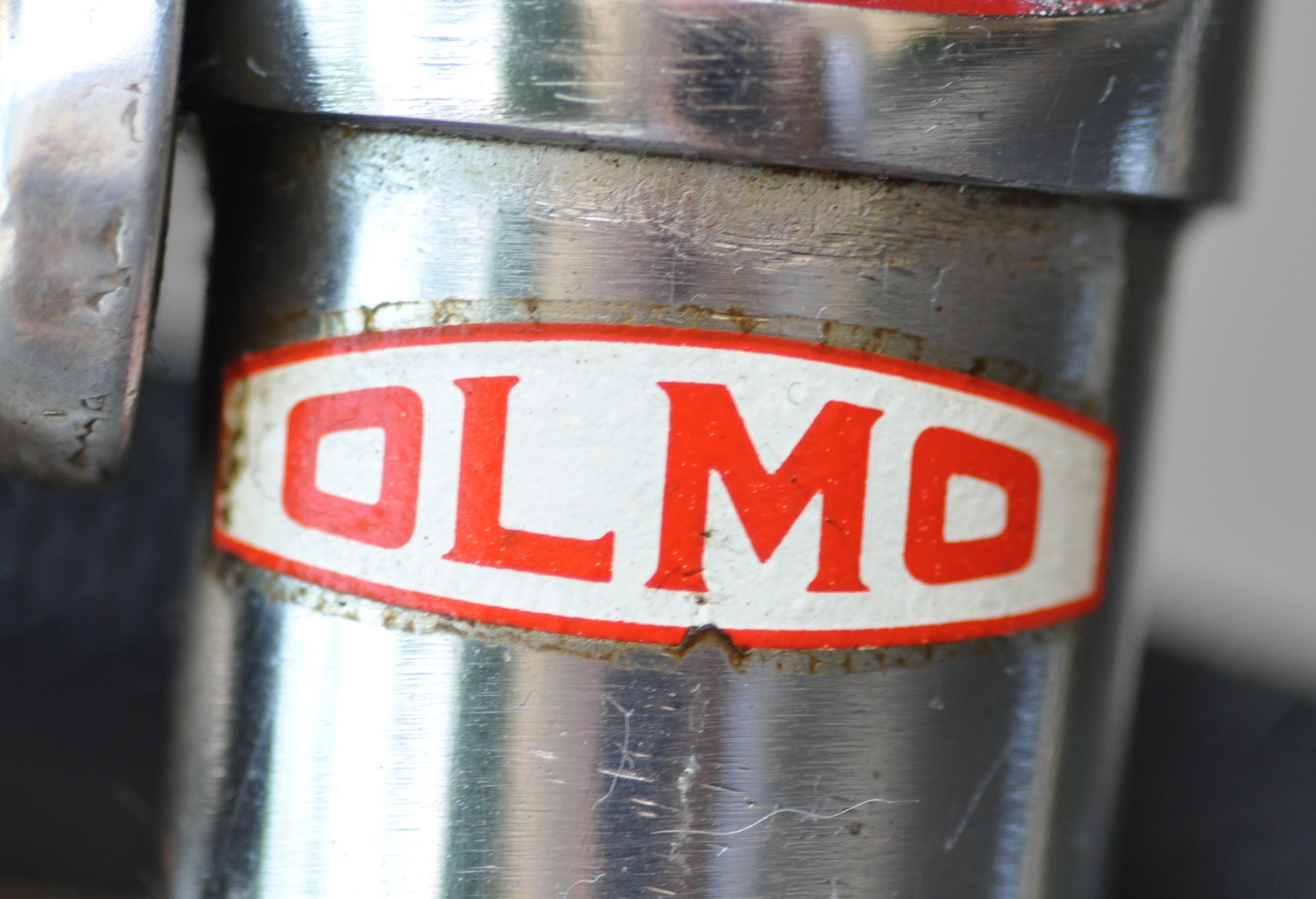

- OLMO seat tube shield: 53mm high; 37mm wide;
65mm below bottom of upper seat tube band; 73mm above top of lower seat tube band

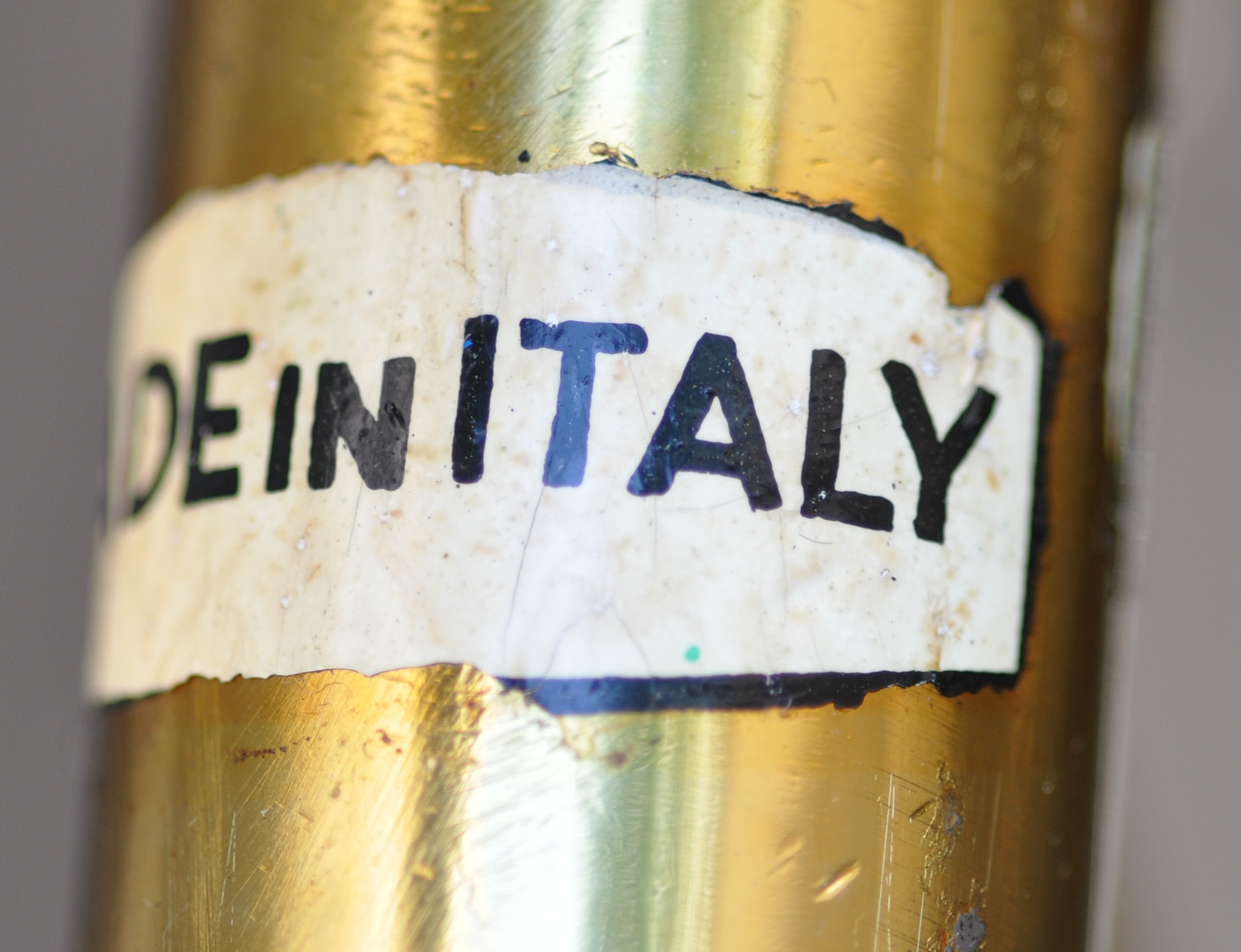

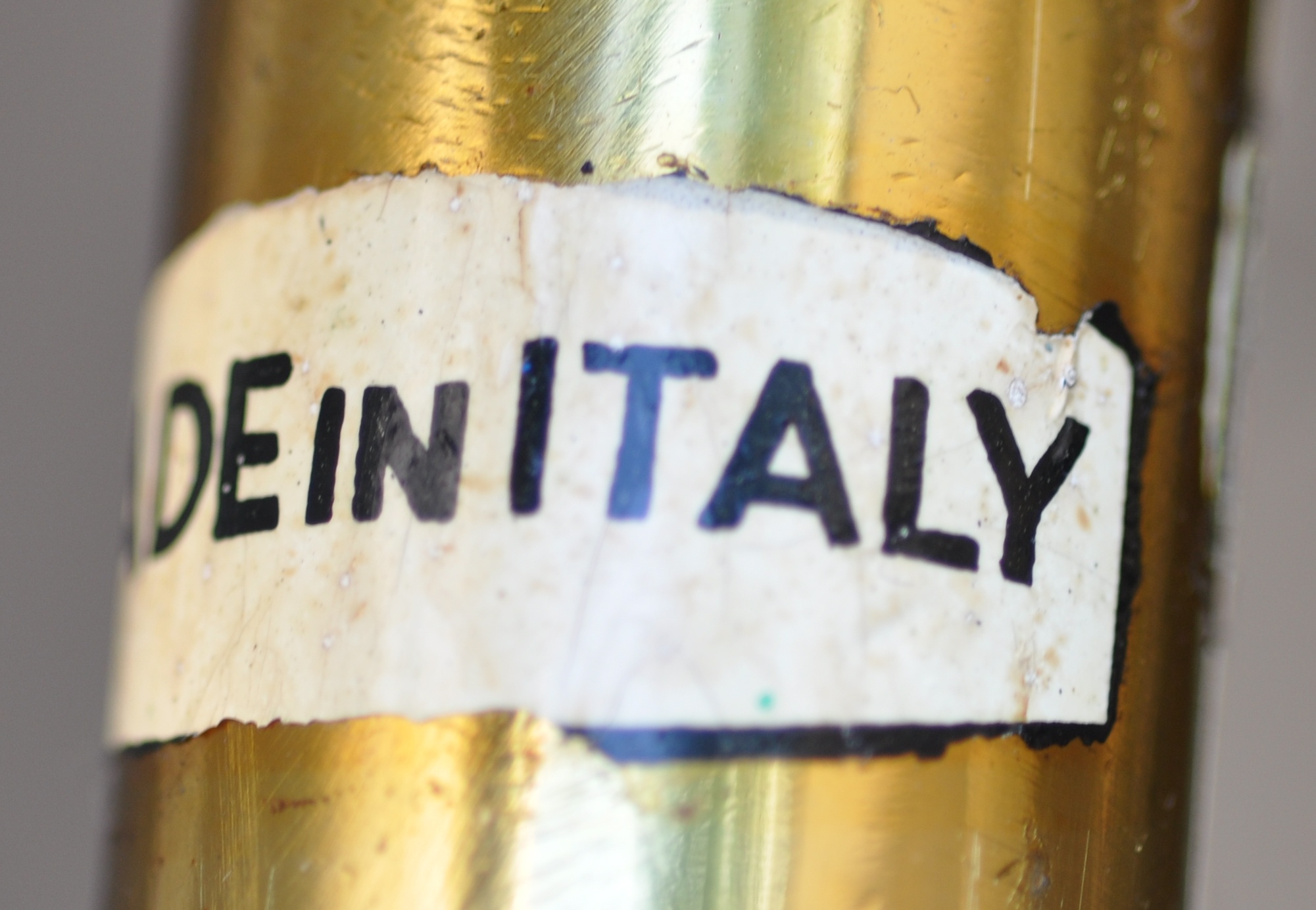

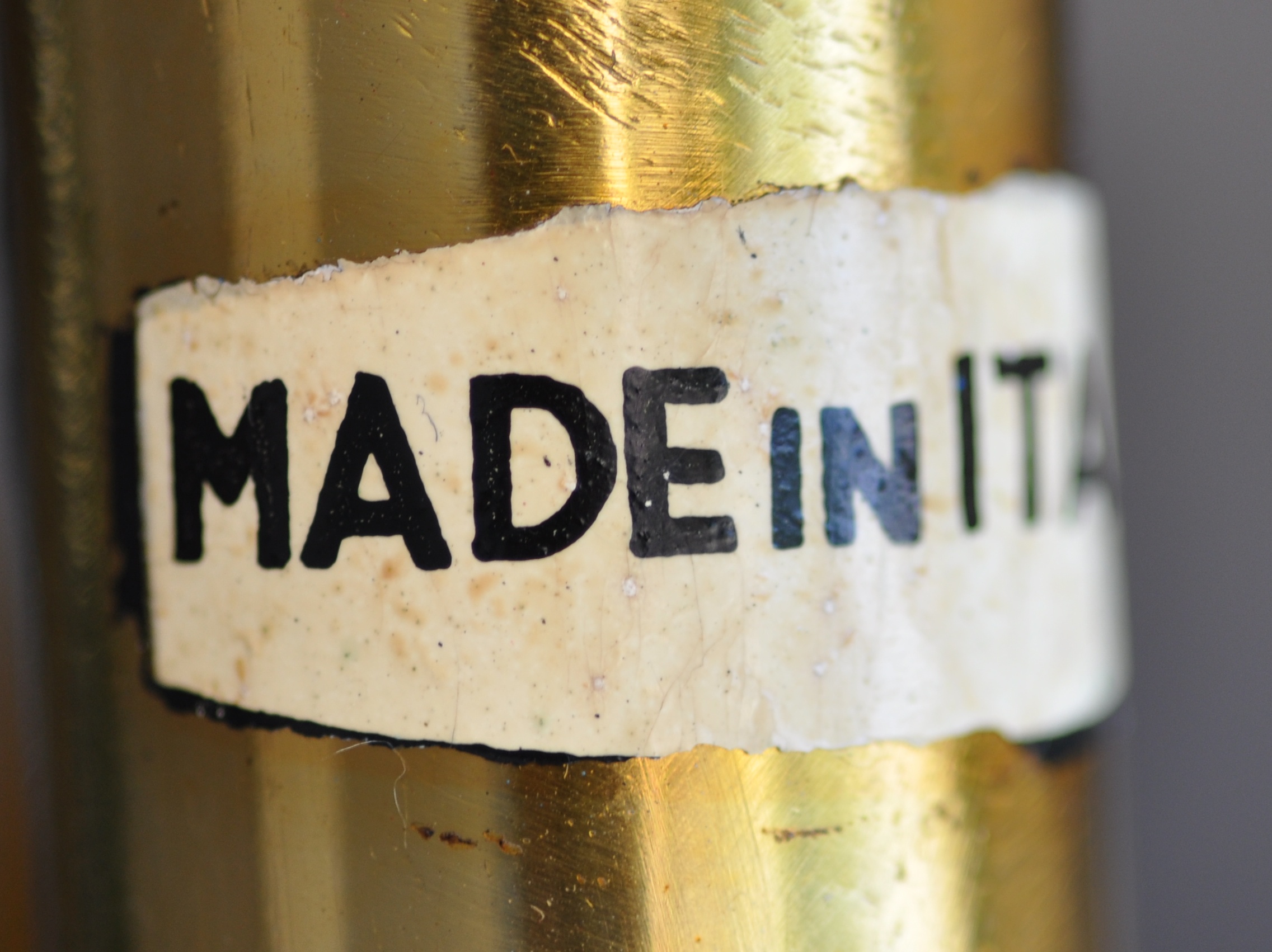

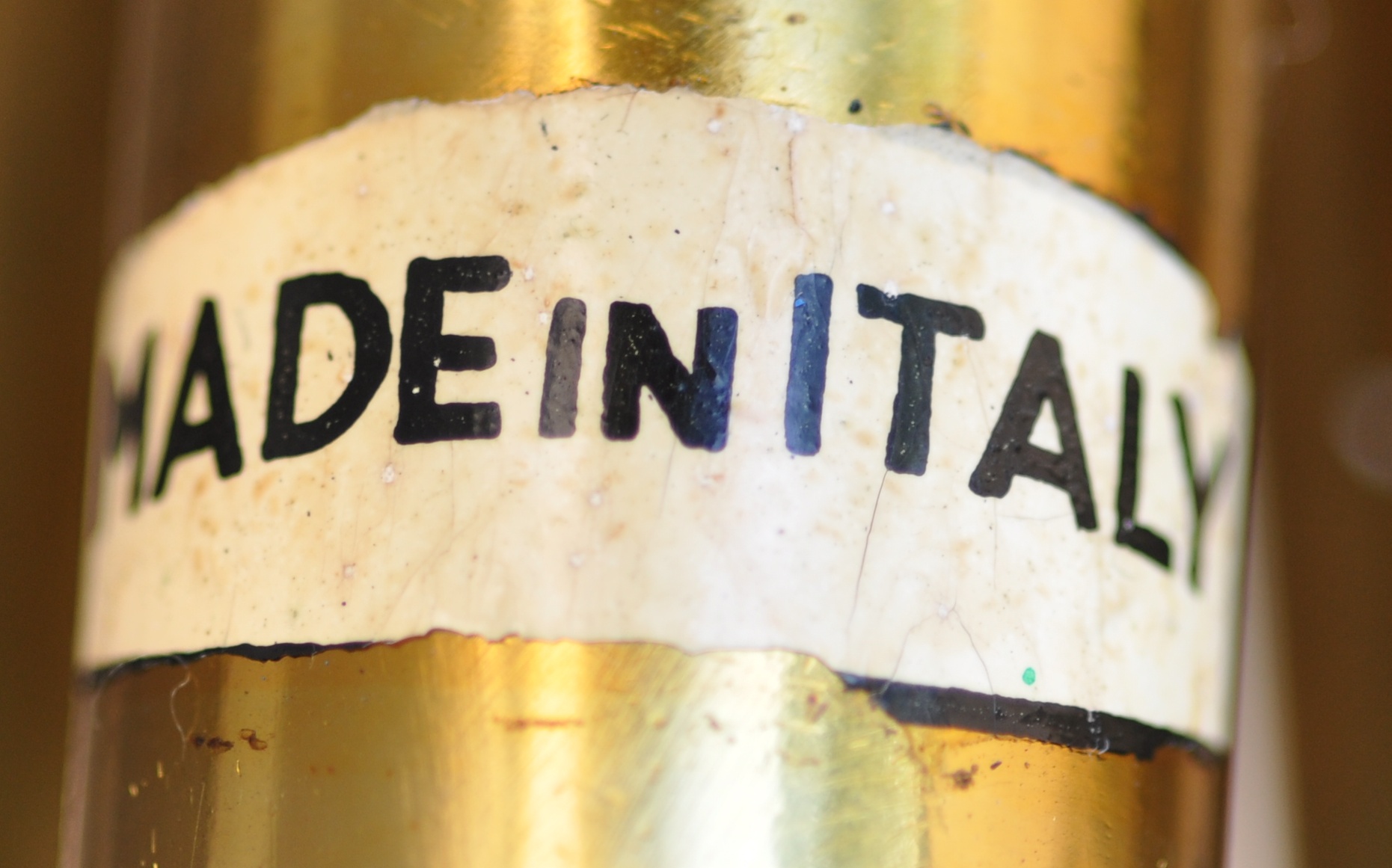

- MADE IN ITALY: 44mm wide; 11-17mm high; on front of seat tube, 13mm below seat lug point

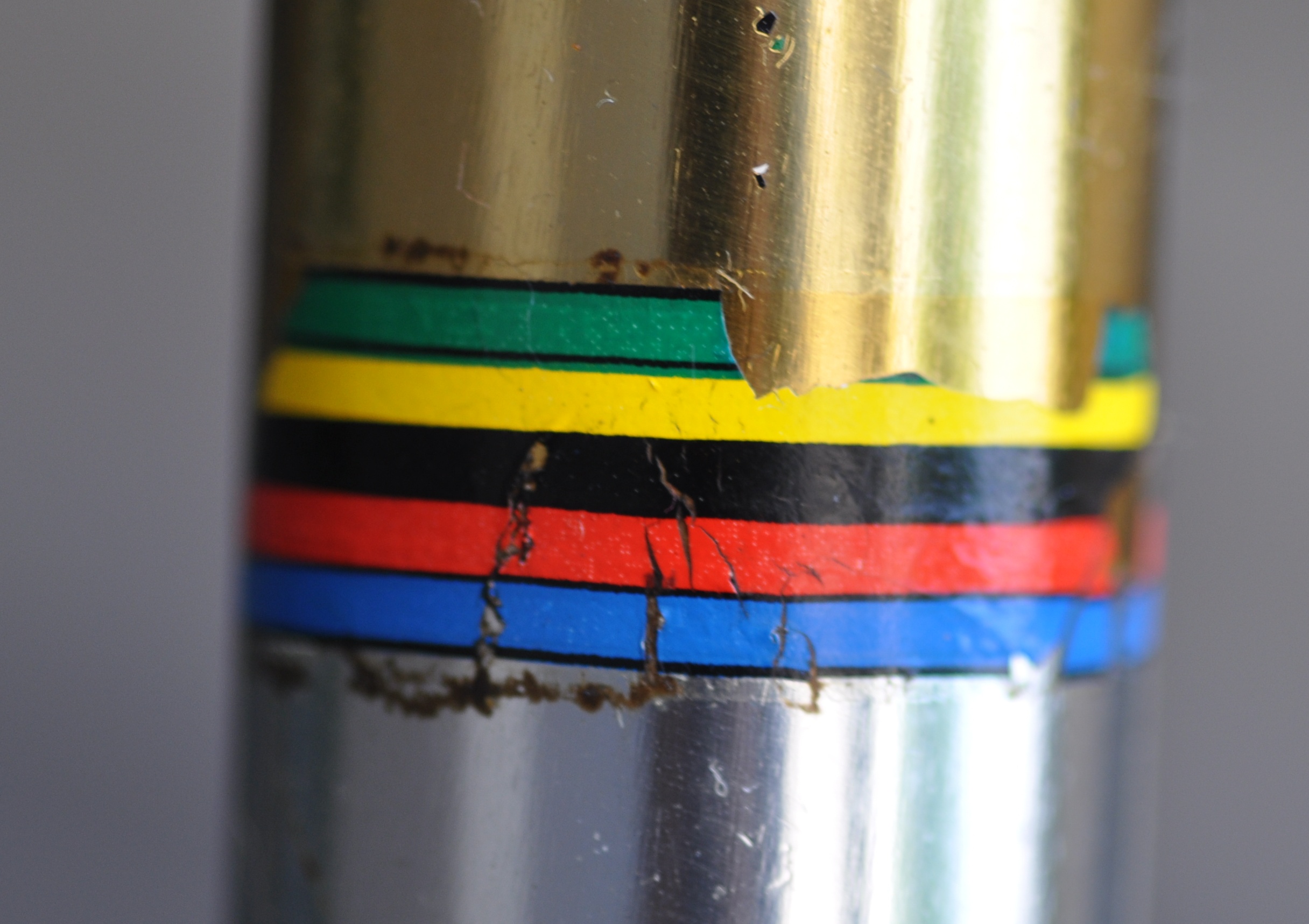

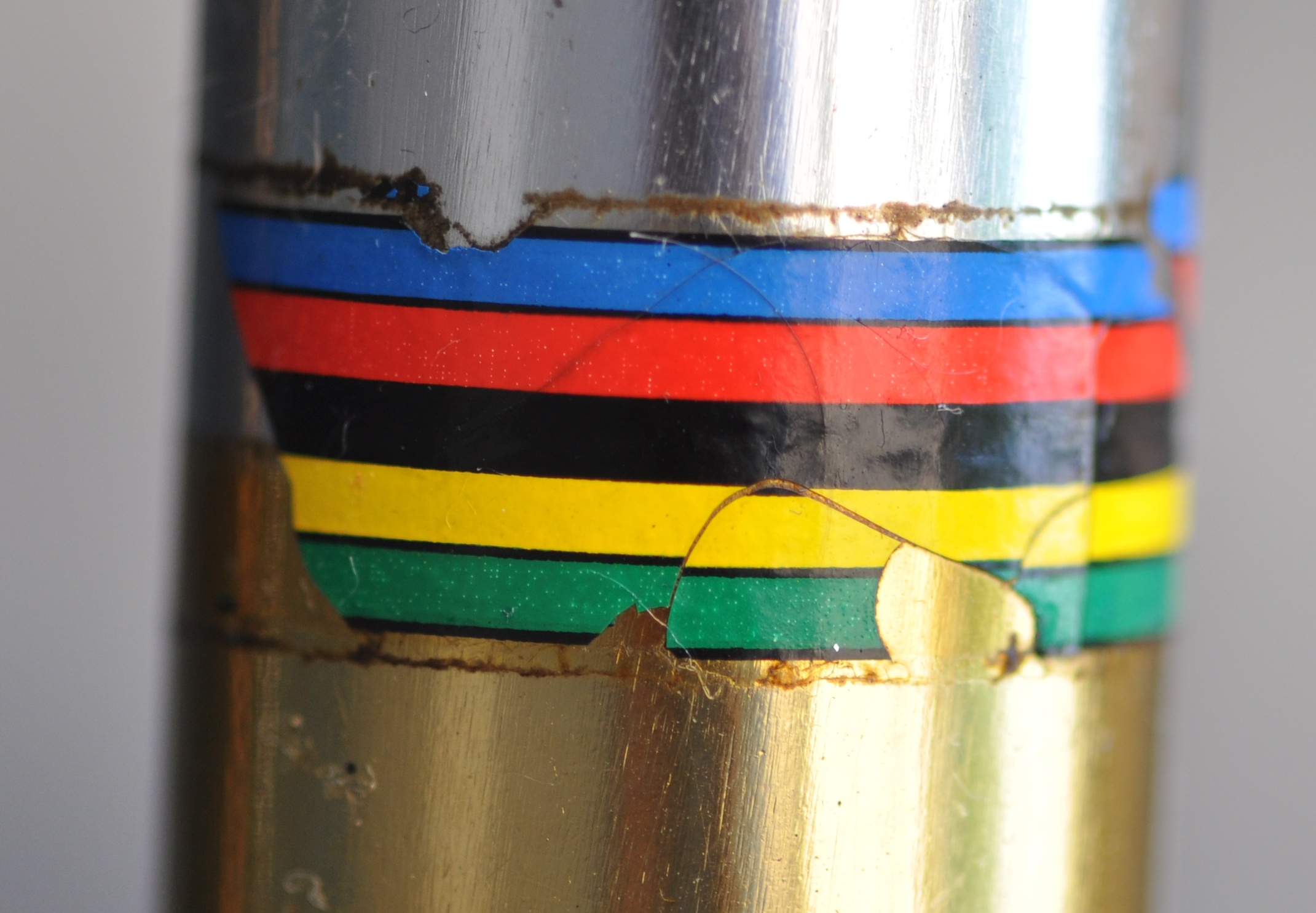

- 12mm seat tube and seat/chain stay bands, covering transitions between gold and chrome;
seat tube upper band is 141mm below seat lug point; seat tube lower band is 160mm above bottom bracket lug point

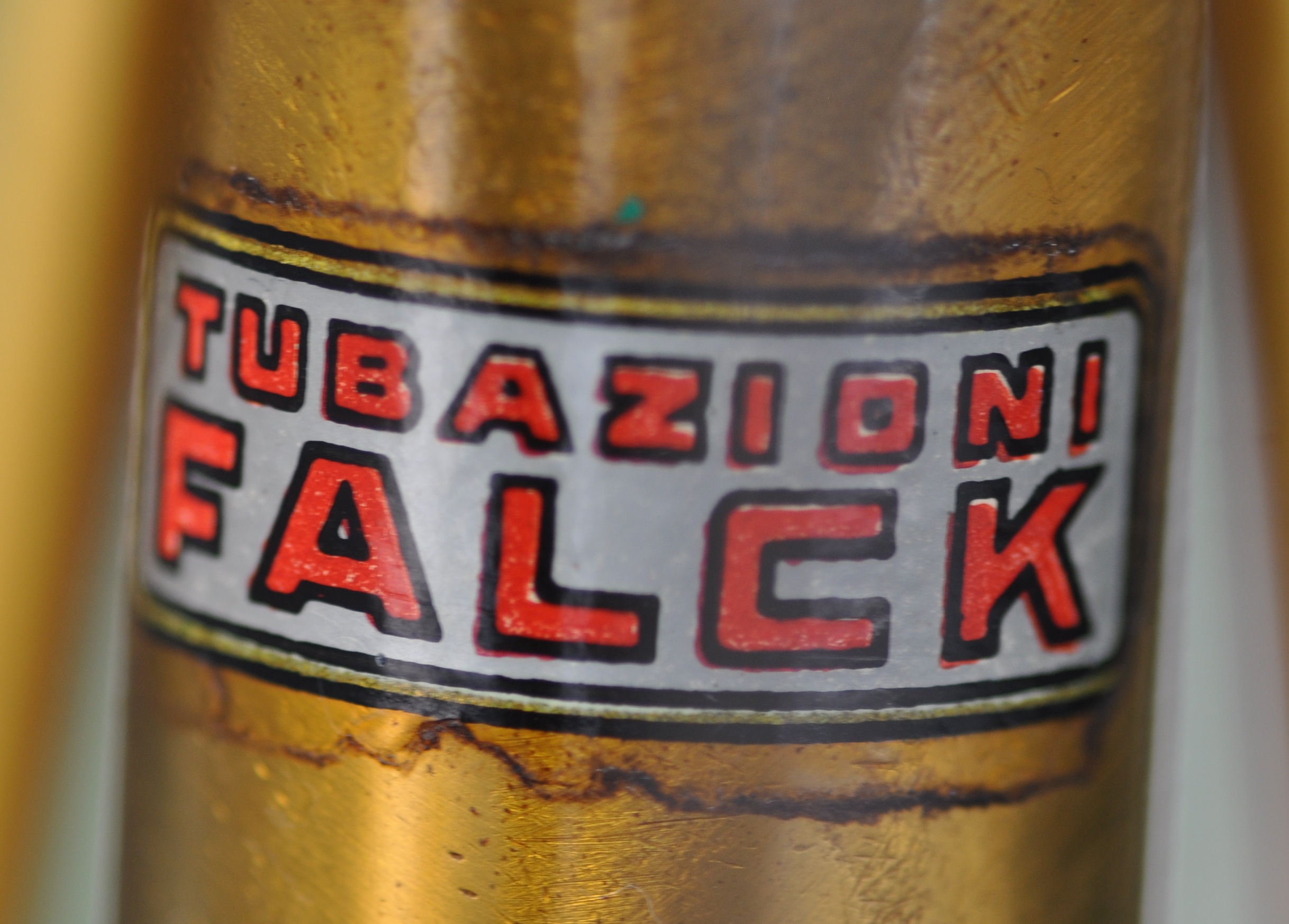

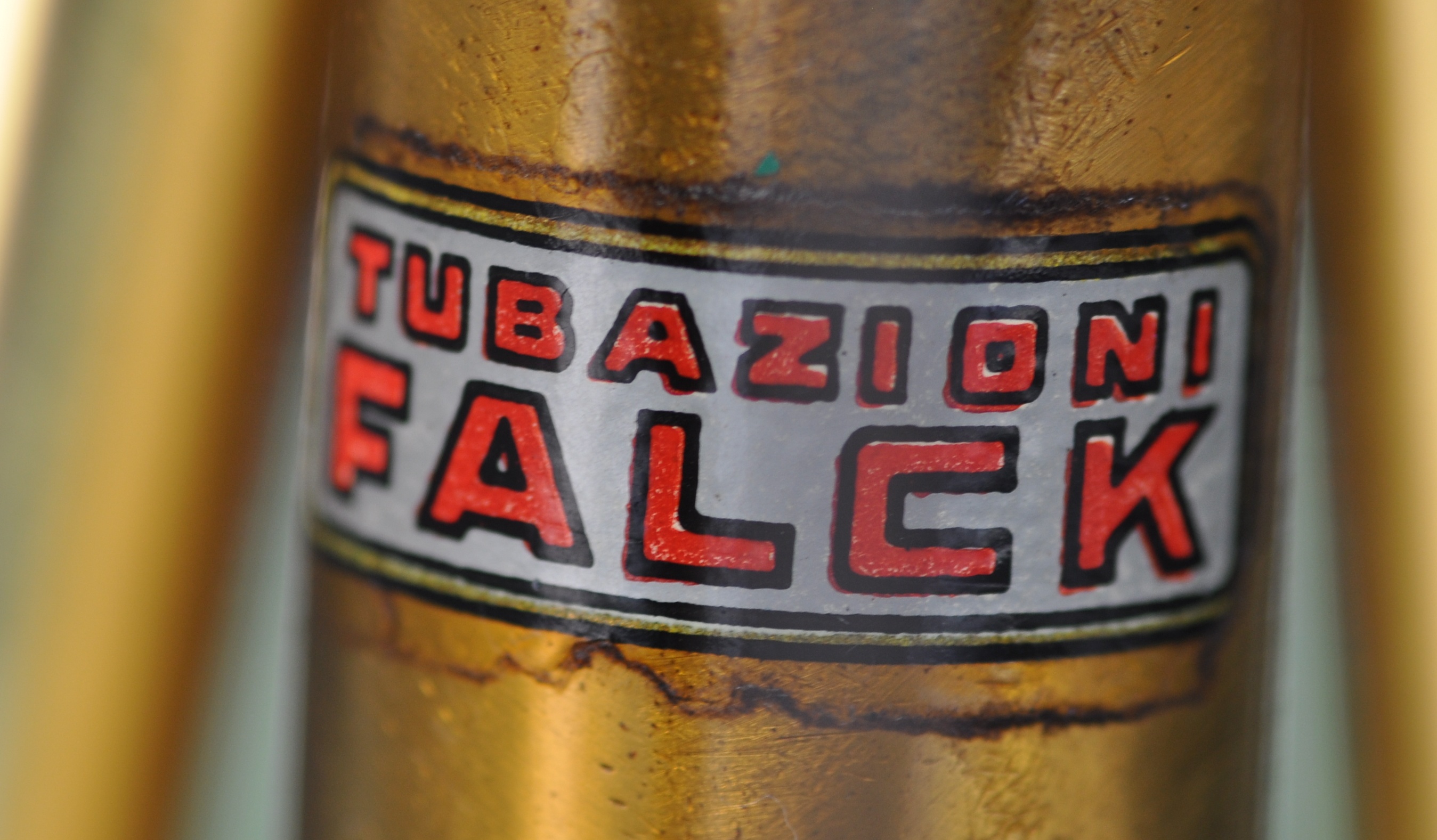

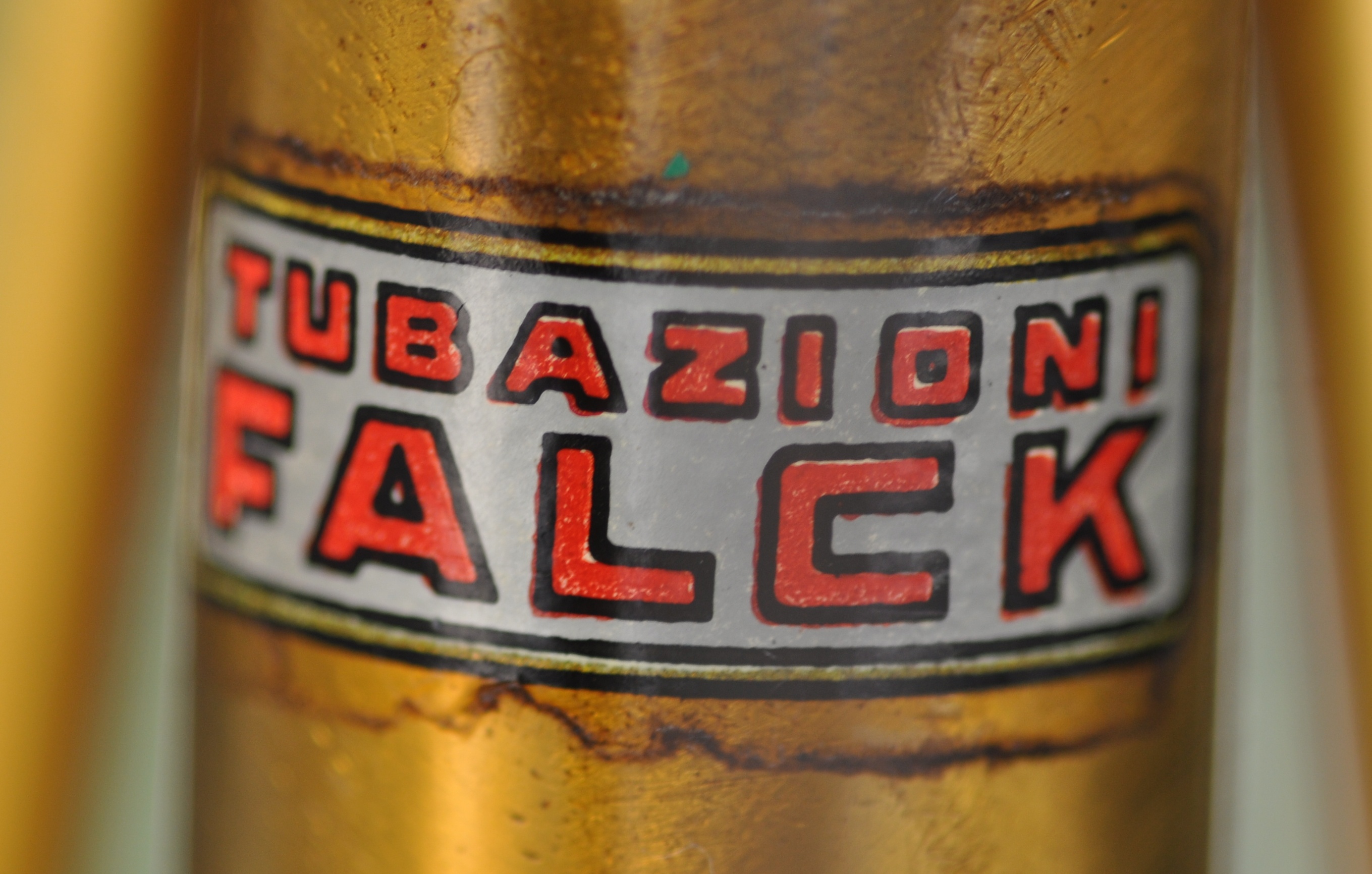

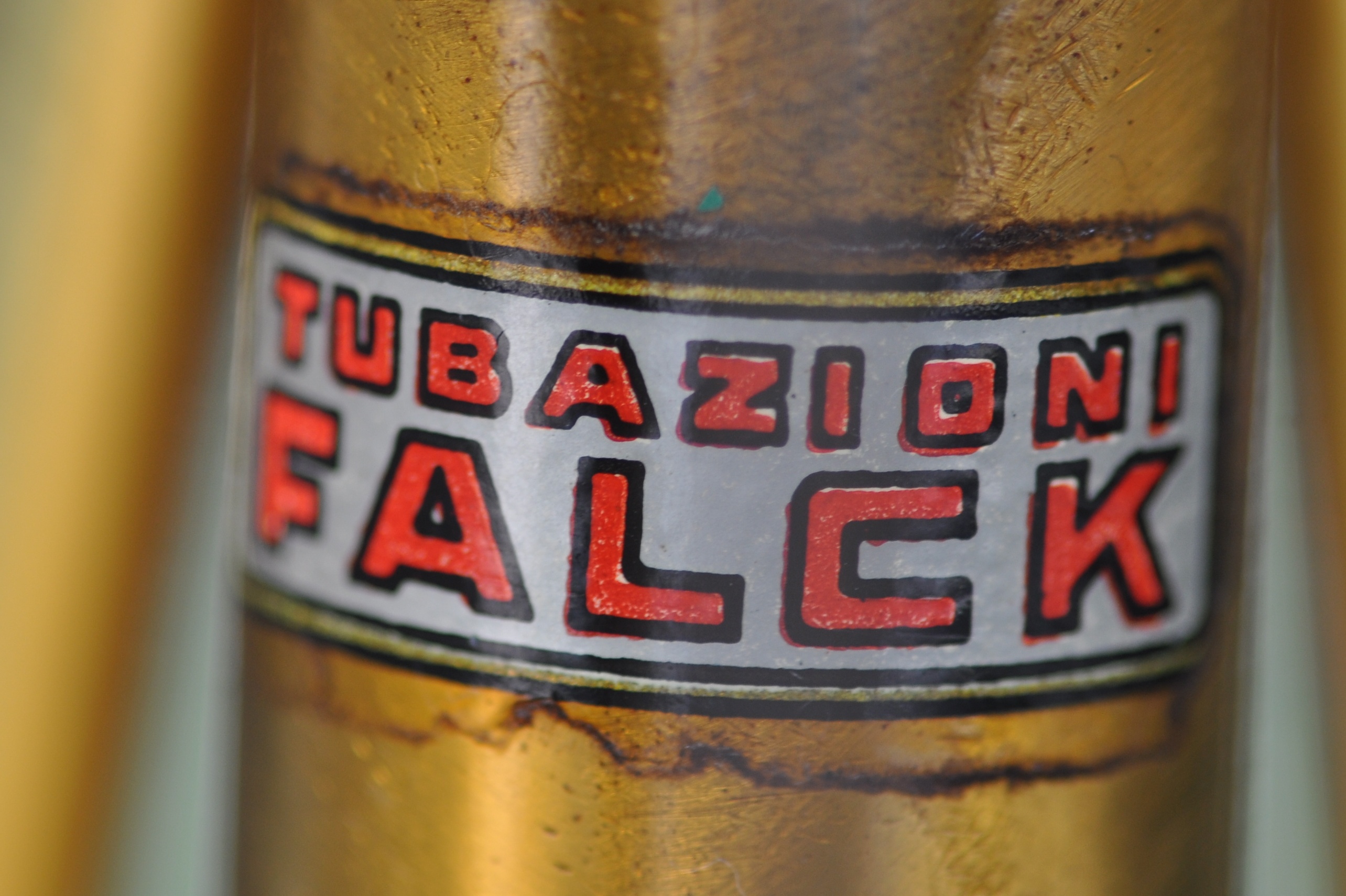

- TUBAZIONI FALCK: 38mm wide; 17mm high; on back of seat tube, 14mm below seat lug
